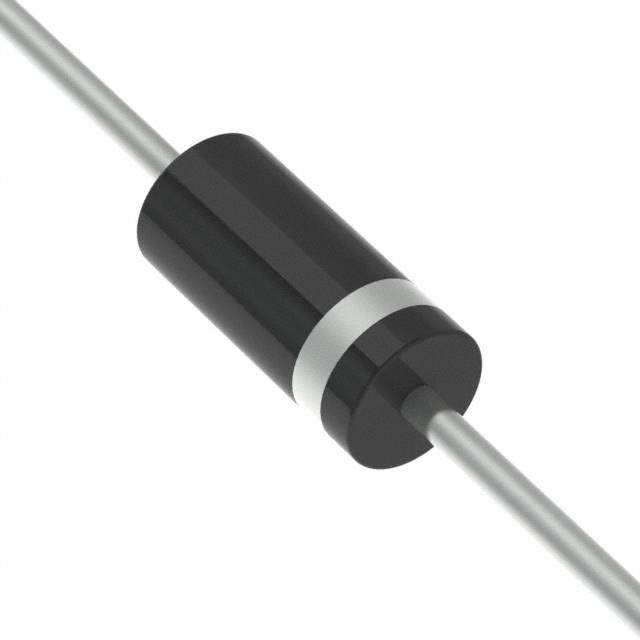

SA24A Real Image
Same model may have multiple batches, images only for reference.

SA24A

Part No SA24A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 38.9VC DO204AC
Datasheet
SA24A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 24V
Minimum Breakdown Voltage 26.7V
Max Clamping Voltage 38.9V
Peak Pulse Current(Ippm) 13.1A
Power Dissipation - Pd 500W
Applications General Purpose
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package DO-204AC (DO-15)
Win Source Part Number 084252-SA24A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SA24A CAD Model

Description

The Littelfuse Inc. SA24A is a zener type electronic component that has general purpose applications.

  • Mounting Type: through a hole
  • Package: reel-TR
  • Case/Package: DO-204AC (DO-15)
  • Temperature Range: -55°C to 175°C
  • Peak Pulse Current: 13.1A
  • Power Dissipation: 500W
  • STAND-OFF Voltage: 24V
  • Supply and Demand Status: balanced
