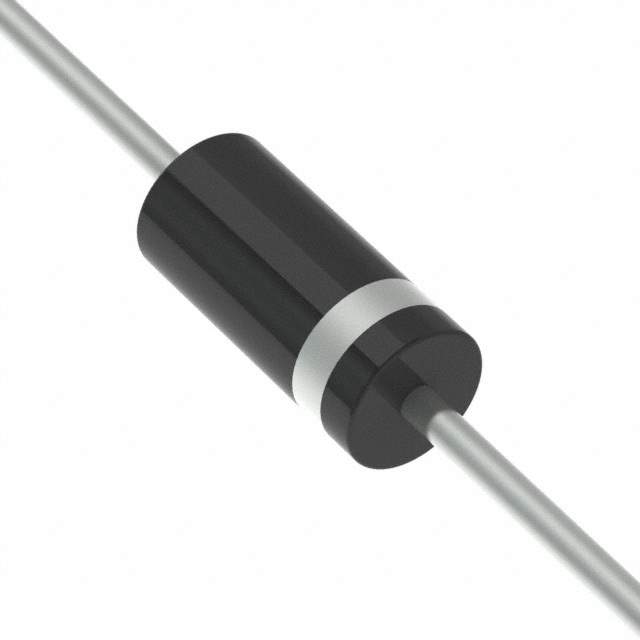

Same model may have multiple batches, images only for reference.

SA20A

Name: SA20A
Brand: Littelfuse Inc.
SKU: 311343
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SA20A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 20VWM 32.4VC DO204AC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Littelfuse Inc.
Standard Package	1
Category	Circuit Protection
Family	TVS - Diodes
Series	SA
Packaging	Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	20V
Voltage - Breakdown (Min)	22.2V
Voltage - Clamping (Max) @ Ipp	32.4V
Current - Peak Pulse (10/1000µs)	15.7A
Power - Peak Pulse	500W
Power Line Protection	No
Applications	General Purpose
Operating Temperature Range	-55°C ~ 175°C (TJ)
Mounting Style	Through Hole
Package	DO-204AC DO-15 Axial
Manufacturer Device Package	DO-204AC (DO-15)
Catalog	SA Series
Win Source Part Number	063969-SA20A
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian SA20A CAD Model

Alternative Products

Description

The Littelfuse Inc. SA series Zener diode is a circuit protection device that is ideal for general-purpose applications.

Package: DO-204AC (DO-15) axial package
Voltage Rating: 20V reverse standoff and 22.2V breakdown
Power Peak Pulse: 500W
Maximum Clamping Voltage: 32.4V @ Ipp
Peak Pulse Current: 15.7A @ 10/1000µs
Operating Temperature Range: -55°C to 175°C (TJ)
Packaging: reel packaging
