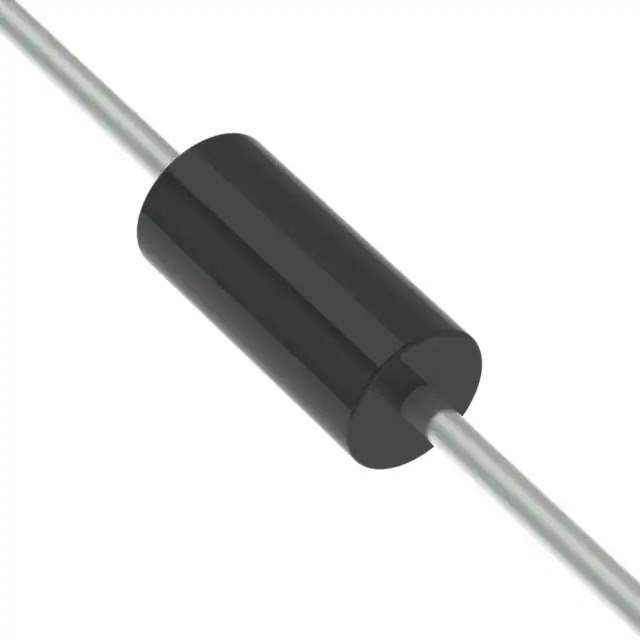

SA170CA Real Image
Same model may have multiple batches, images only for reference.

SA170CA

Part No SA170CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 170VWM 275VC DO204AC
Datasheet
SA170CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series SA
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 170V
Voltage - Breakdown (Min) 189V
Voltage - Clamping (Max) @ Ipp 275V
Current - Peak Pulse (10/1000µs) 1.9A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 663320-SA170CA
Ultra Librarian 3D Model Ultra Librarian SA170CA CAD Model

Description

The 663320-SA170CA is a SA series Zener type Transient Voltage Suppressor (TVS) diode from Littelfuse Inc.

  • Series: SA
  • Type: Zener TVS diode
  • Use: General purpose circuit protection
  • Reverse Standoff Voltage: 170V
  • Breakdown Voltage: 189V
  • Clamping Voltage: 275V @ peak pulse current
  • Power Peak Pulse: 500W
  • Package Type: DO-204AC, DO-15, Axial
  • Mounting: Through hole
  • Standard Package: 4,000 pieces
  • Operating Temperature Range: -55°C to 175°C
  • Status: Active
  • Compliance: California Prop 65
