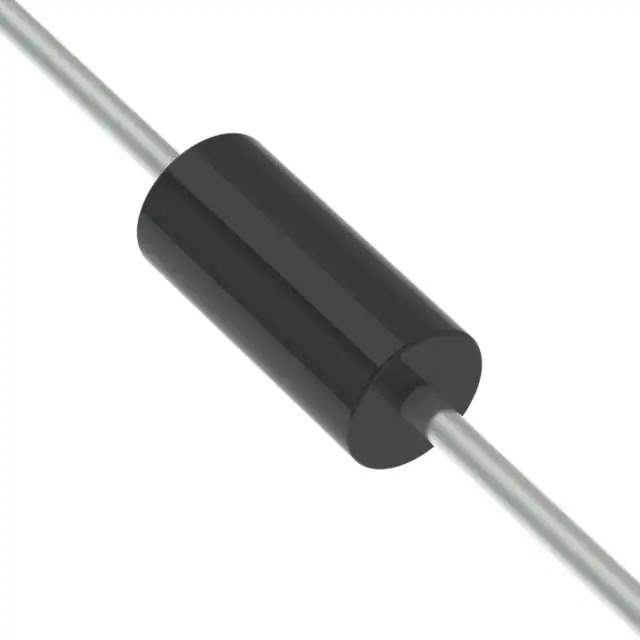

Same model may have multiple batches, images only for reference.

SA14CA

Name: SA14CA
Brand: Littelfuse Inc.
SKU: 663312
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SA14CA
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 14VWM 23.2VC DO204AC
Datasheet	SA14CA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	SA
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Active
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	14V
Voltage - Breakdown (Min)	15.6V
Voltage - Clamping (Max) @ Ipp	23.2V
Current - Peak Pulse (10/1000µs)	22A
Power - Peak Pulse	500W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-204AC, DO-15, Axial
Supplier Device Package	DO-204AC (DO-15)
Standard Package	4,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	663312-SA14CA
Ultra Librarian 3D Model	Ultra Librarian SA14CA CAD Model

Alternative Products

Description

The SA14CA is a bidirectional Zener diode from Littelfuse Inc.

Series: SA
Application: circuit protection against transient voltage surges
Reverse Standoff Voltage: 14V
Breakdown Voltage: 15.6V
Clamping Voltage: 23.2V @ a peak pulse current of 22A
Power Rating: 500W
Package: DO-204AC (DO-15) axial
Mounting: through hole
Operating temperature range: -55°C to 175°C
Product status: active
REACH: unaffected by REACH regulations
