Same model may have multiple batches, images only for reference.

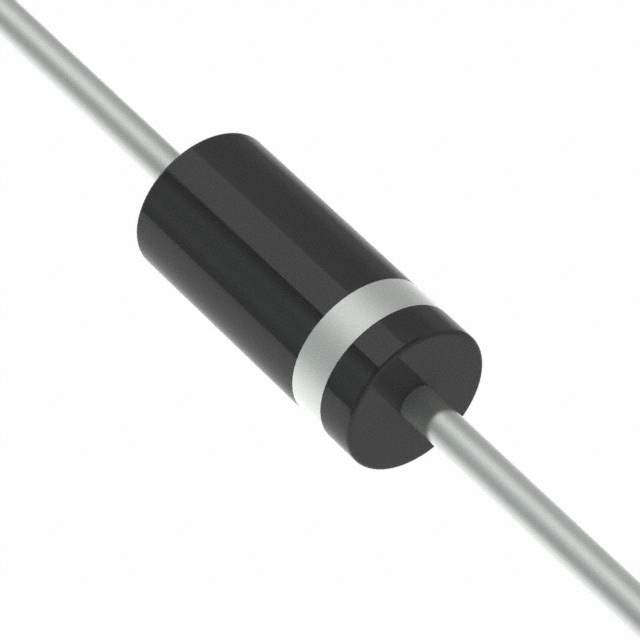

SA12A Real Image
Same model may have multiple batches, images only for reference.

SA12A

Part No SA12A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 19.9VC DO204AC
Datasheet
SA12A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 13.3V
Max Clamping Voltage 19.9V
Peak Pulse Current(Ippm) 25.6A
Power Dissipation - Pd 500W
Applications General Purpose
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package DO-204AC (DO-15)
Win Source Part Number 046706-SA12A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Ultra Librarian 3D Model Ultra Librarian SA12A CAD Model

Description

The Littelfuse Inc. 046706-SA12A is a through-hole zener diode that is commonly used in general-purpose applications.

  • Stand-Off Voltage: 12V
  • Minimum Breakdown Voltage: 13.3V
  • Maximum Clamping Voltage: 19.9V
  • Peak Pulse Current: 25.6A
  • Power Dissipation: 500W
  • Applications: Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial Applications
  • Supply and Demand Status: Limited
