Same model may have multiple batches, images only for reference.

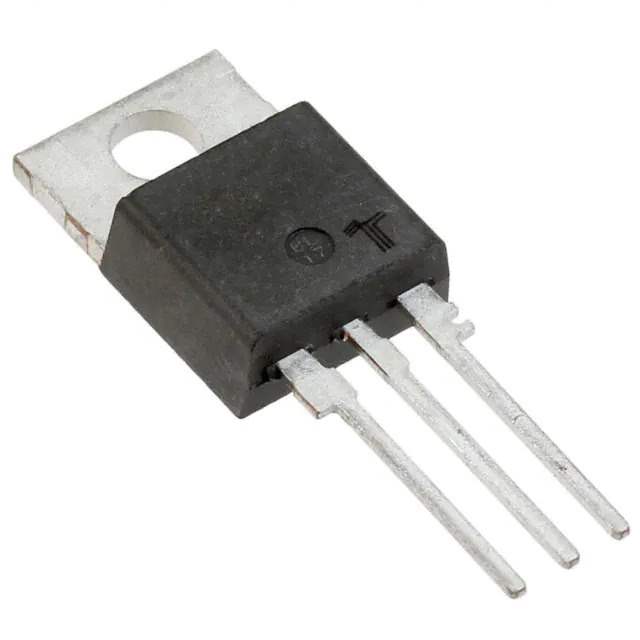

S8055R Real Image
Same model may have multiple batches, images only for reference.

S8055R

Part No S8055R
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description SCR 800V 55A TO220
Datasheet
S8055R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs
Mfr Littelfuse Inc.
Package Bulk
Product Status Discontinued
Voltage - Off State 800 V
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Gate Trigger (Igt) (Max) 40 mA
Voltage - On State (Vtm) (Max) 1.8 V
Current - On State (It (AV)) (Max) 35 A
Current - On State (It (RMS)) (Max) 55 A
Current - Hold (Ih) (Max) 60 mA
Current - Off State (Max) 20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 550A, 650A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220 Non-Isolated Tab
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 662950-S8055R
Ultra Librarian 3D Model Ultra Librarian S8055R CAD Model

Description

The 662950-S8055R is a standard recovery SCR thyristor used in discrete semiconductor products.

  • Maximum Gate Trigger Voltage: 1.5V
  • Maximum Gate Trigger Current: 40mA
  • Off-State Voltage: 800V
  • On-State Current (AV): 35A
  • On-State Current (RMS): 55A
  • Maximum Off-State Current: 20µA
  • Non-Repetitive Surge Current: 550A (50Hz) and 650A (60Hz)
  • Mounting Type: Through-Hole
  • Package: TO-220-3
  • Supplier Device Package: TO-220 Non-Isolated Tab
  • Manufacturer: Littelfuse Inc.
  • Status: Discontinued
