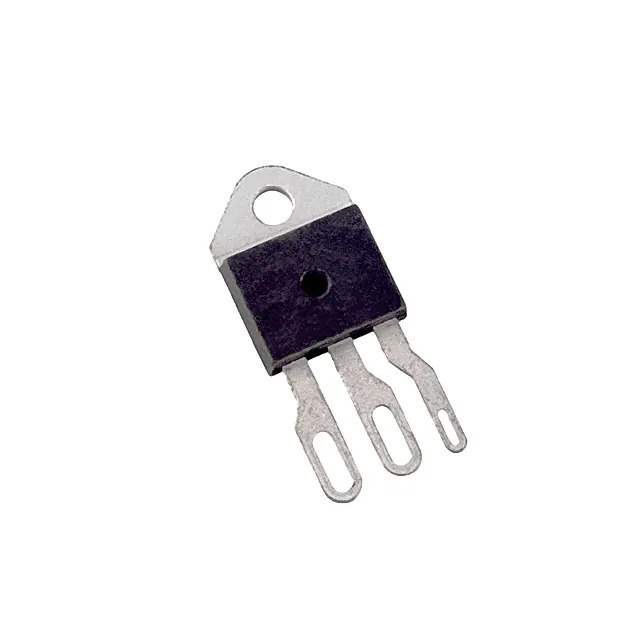

S4065JTP Real Image
Same model may have multiple batches, images only for reference.

S4065JTP

Part No S4065JTP
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description SCR 400V 65A TO218X
Datasheet
S4065JTP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs
Mfr Littelfuse Inc.
Package Tube
Product Status Active
Voltage - Off State 400 V
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 50 mA
Voltage - On State (Vtm) (Max) 1.8 V
Current - On State (It (AV)) (Max) 41 A
Current - On State (It (RMS)) (Max) 65 A
Current - Hold (Ih) (Max) 80 mA
Current - Off State (Max) 20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 800A, 950A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case TO-218X-3 Isolated Tab
Supplier Device Package TO-218X Isolated
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 847874-S4065JTP
Ultra Librarian 3D Model Ultra Librarian S4065JTP CAD Model

Description

The S4065JTP is a standard recovery thyristor from Littelfuse Inc.

  • Maximum Gate Trigger Voltage: 2V.
  • Maximum Gate Trigger Current: 50 mA.
  • Off-State Voltage Rating: 400V.
  • Maximum On-State Voltage: 1.8V.
  • Maximum On-State Current: 41A (average) and 65A (RMS).
  • Maximum Off-State Current: 20μA.
  • Mounting: Through-hole.
  • Package: TO-218X-3 isolated tab.
  • Operating Temperature Range: -40°C to 125°C.
  • Product Status: Active.
