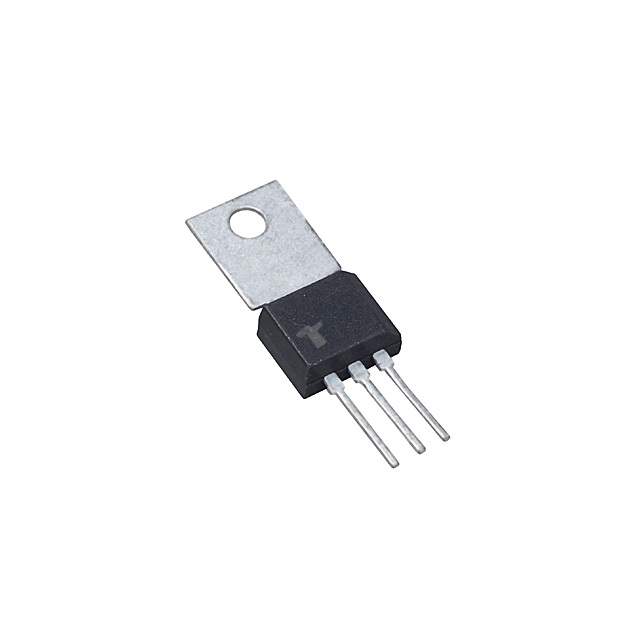

S4006FS31 Real Image
Same model may have multiple batches, images only for reference.

S4006FS31

Part No S4006FS31
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Datasheet
S4006FS31 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Littelfuse Inc.
Package Bulk
Product Status Obsolete
Voltage - Off State 400 V
Voltage - Gate Trigger (Vgt) (Max) 800 mV
Current - Gate Trigger (Igt) (Max) 500 µA
Voltage - On State (Vtm) (Max) 1.6 V
Current - On State (It (AV)) (Max) 3.8 A
Current - On State (It (RMS)) (Max) 6 A
Current - Hold (Ih) (Max) 8 mA
Current - Off State (Max) 5 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 83A, 100A
SCR Type Sensitive Gate
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case TO-202 Long Tab
Supplier Device Package TO-202
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1278970-S4006FS31
Ultra Librarian 3D Model Ultra Librarian S4006FS31 CAD Model

Description

The 1278970-S4006FS31 from Littelfuse Inc. is a sensitive gate SCR designed for use in discrete semiconductor products, specifically thyristors.

  • Package: TO-202 Long Tab
  • Mounting Type: Through-Hole
  • Operating Temperature Range: -40°C to 110°C
  • Maximum Off-State Voltage: 400 V
  • Maximum On-State Current: 3.8 A
  • Maximum Gate Trigger Voltage: 800 mV
  • Maximum Gate Trigger Current: 500 µA
  • Holding Current: 8 mA
  • Maximum Non-Repetitive Surge Current: 83A and 100A @ 50Hz and 60Hz respectively
  • Product Status: Obsolete
