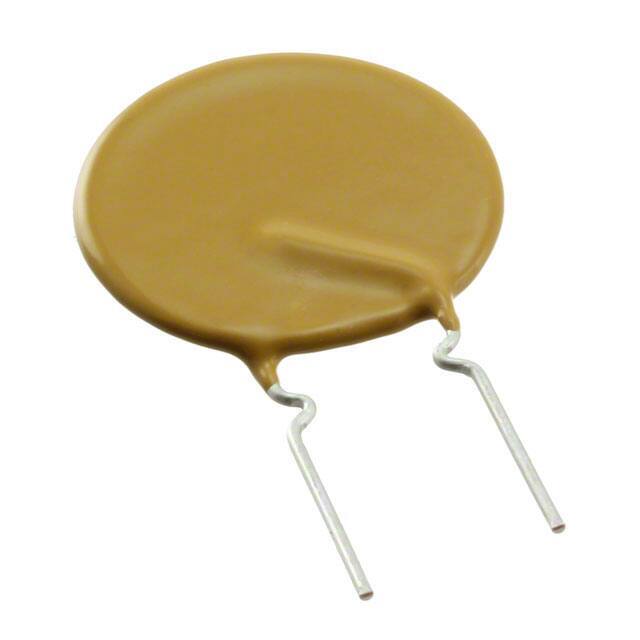

RXEF300K-2 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

RXEF300K-2

Part No RXEF300K-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 72V 3A RADIAL / Polymeric PTC Resettable Fuse 72V 3 A Ih Through Hole Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, RXEF
Package Tape & Reel (TR)
Product Status Active
Type Polymeric
Voltage - Max 72V
Current - Hold (Ih) (Max) 3 A
Current - Trip (It) 6 A
Current - Max 40 A
Time to Trip 19.8 s
Resistance - Initial (Ri) (Min) 40 mOhms
Resistance - Post Trip (R1) (Max) 100 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.910" Dia x 0.118" T (23.11mm x 3.00mm)
Height - Seated (Max) 1.154" (29.30mm)
Thickness (Max) -
Lead Spacing 0.400" (10.15mm)
Approval Agency CQC, CSA, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 1361803-RXEF300K-2
Ultra Librarian 3D Model Ultra Librarian RXEF300K-2 CAD Model

Description

The PolySwitch® RXEF series is a PTC resettable fuse designed for circuit protection from Littelfuse Inc.

  • Current Rating: 40A
  • Voltage Rating: 72V
  • Temperature Range: -40°C to 85°C
  • Package: Radial, disc
  • Mounting Type: Through hole
  • Trip Current: 6A
  • Time to Trip: 19.8 seconds
  • Initial Resistance: 40 mOhms
  • Post-trip Resistance: 100 mOhms
  • Approvals: CQC, CSA, TUV, and UL
  • Size: 0.910" Dia x 0.118" T (23.11mm x 3.00mm)
  • Product Status: Active
