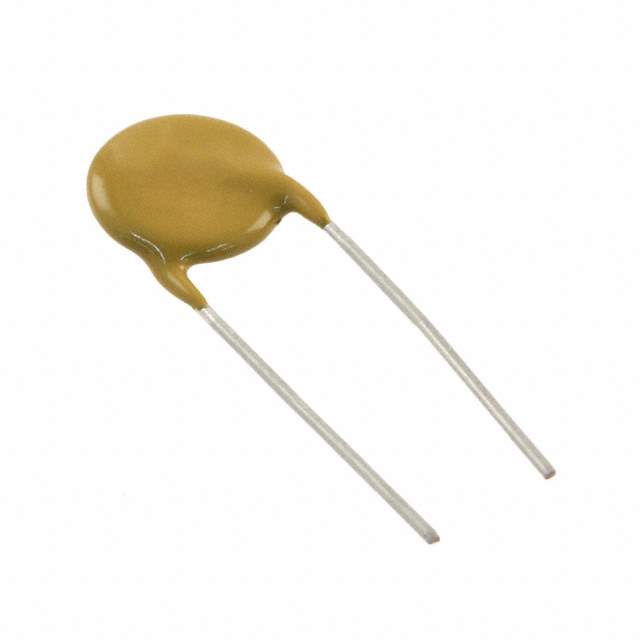

Same model may have multiple batches, images only for reference.

RXEF075S

Name: RXEF075S
Brand: Littelfuse Inc.
SKU: 978249
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	RXEF075S
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 72V 750MA RADIAL / Polymeric PTC Resettable Fuse 72V 750 mA Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, RXEF
Package	Bulk
Type	Polymeric
Voltage - Max	72V
Current - Max	40 A
Current - Hold (Ih) (Max)	750 mA
Current - Trip (It)	1.5 A
Time to Trip	6.3 s
Resistance - Initial (Ri) (Min)	250 mOhms
Resistance - Post Trip (R1) (Max)	600 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.402" Dia x 0.122" T (10.20mm x 3.10mm)
Height - Seated (Max)	0.598" (15.20mm)
Lead Spacing	0.200" (5.08mm)
Approval Agency	CQC, CSA, TUV, UL
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	RF0418-000,-1024-RXEF075S,RF2672-000,RF0418-000-ND
Standard Package	500
Win Source Part Number	978249-RXEF075S
Ultra Librarian 3D Model	Ultra Librarian RXEF075S CAD Model

Description

The 978249-RXEF075S is a circuit protection electronic component manufactured by Littelfuse Inc. that belongs to the PTC Resettable Fuses category.

Series: PolySwitch®, RXEF
Material: Polymeric
Package: Bulk
Height-Seated (Max): 0.598" (15.20mm)
Standard Package: 500
Lead Spacing: 0.200" (5.08mm)
Voltage-Max: 72V
Current-Max: 40 A
Current-Hold (Ih) (Max): 750 mA
Current-Trip (It): 1.5 A
Time to Trip: 6.3 s
Mounting Type: Through Hole
Package/Case: Radial, Disc
Temperature Range for Operating: -40°C ~ 85°C
Dimension: 0.402" Dia x 0.122" T (10.20mm x 3.10mm)
Resistance-Initial (Ri) (Min): 250 mOhms
Resistance-Post Trip (R1) (Max): 600 mOhms
MSL Level: 1 (unlimited)
HTSUS: 8533.40.8070
Win Source Part Number: 978249-RXEF075S
