Same model may have multiple batches, images only for reference.

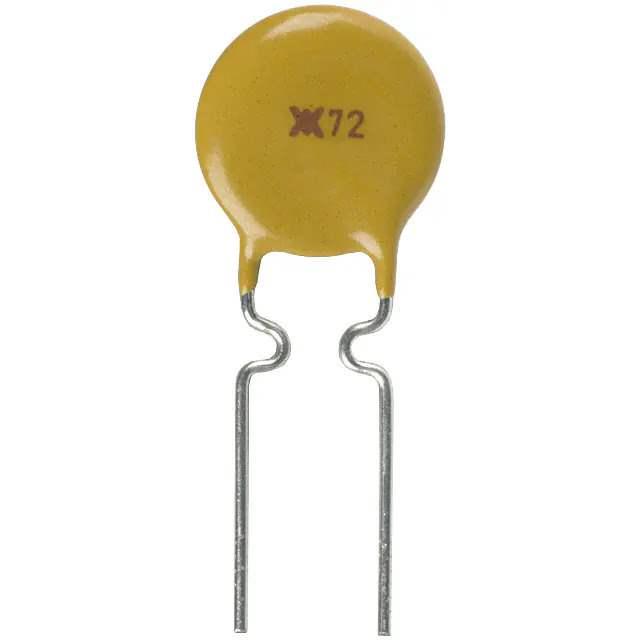

RXEF075 Real Image
Same model may have multiple batches, images only for reference.

RXEF075

Part No RXEF075
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 72V 750MA RADIAL / Polymeric PTC Resettable Fuse 72V 750 mA Ih Through Hole Radial, Disc
Datasheet
RXEF075 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, RXEF
Package Bag
Product Status Active
Type Polymeric
Voltage - Max 72V
Current - Hold (Ih) (Max) 750 mA
Current - Trip (It) 1.5 A
Current - Max 40 A
Time to Trip 6.3 s
Resistance - Initial (Ri) (Min) 250 mOhms
Resistance - Post Trip (R1) (Max) 600 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.402" Dia x 0.118" T (10.20mm x 3.00mm)
Height - Seated (Max) 0.598" (15.20mm)
Lead Spacing 0.199" (5.05mm)
Approval Agency CQC, CSA, TUV, UL
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 662112-RXEF075
Ultra Librarian 3D Model Ultra Librarian RXEF075 CAD Model

Description

The RXEF075 is a PolySwitch resettable fuse from Littelfuse Inc.

  • Series: PolySwitch RXEF
  • Package: Radial, disc
  • Maximum Voltage: 72V
  • Maximum Current: 40A
  • Hold Current: 750mA
  • Trip Current: 1.5A
  • Time to Trip: 6.3 seconds
  • Mounting: Through-hole
  • Size: 0.402" diameter x 0.118" thickness
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • REACH: Unaffected
  • Suitable for: Various electronic devices and systems
