Same model may have multiple batches, images only for reference.

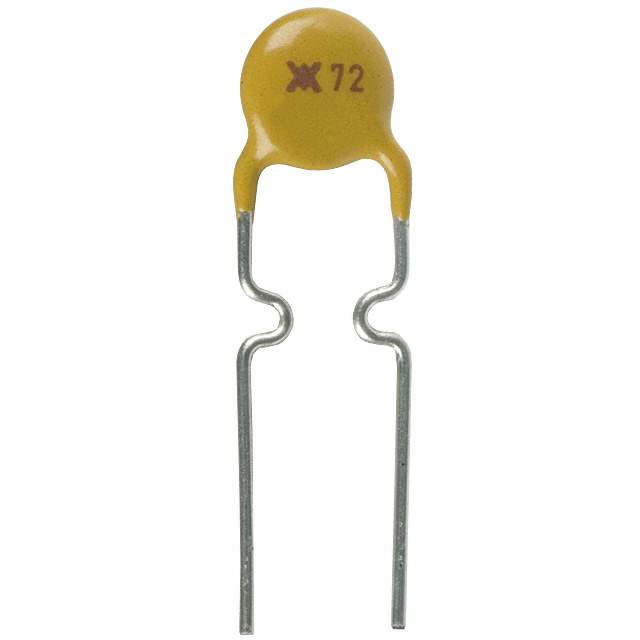

RXEF030-AP Real Image
Same model may have multiple batches, images only for reference.

RXEF030-AP

Part No RXEF030-AP
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 72V 300MA RADIAL / PolySwitch Resettable Devices Radial-leaded Devices
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Tape & Box (TB)
Type Polymeric
Voltage - Max 72V
Current - Max 40A
Current - Hold (Ih) (Maximum) 300mA
Current - Trip (It) 600mA
Time to Trip 3s
Resistance - Initial (Ri) (Min) 880 mOhms
Resistance - Post Trip (R1) (Maximum) 2.1 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Maximum) 0.500" (12.70mm)
Lead Spacing 0.199" (5.05mm)
Approvals CQC, CSA, TUV, UL
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800907-RXEF030-AP
Ultra Librarian 3D Model Ultra Librarian RXEF030-AP CAD Model

Description

The Littelfuse Inc. RXEF030-AP is a through-hole polymeric resettable fuse that is designed to protect electronic circuits from overcurrent and short circuit faults.

  • Voltage Rating: 72V
  • Current Rating: 40A
  • Current Trip: 600mA
  • Time to Trip: 3s
  • Resistance Initial: 880 mOhms
  • Resistance Post-Trip: 2.1 Ohms
  • Manufacturer Pack Quantity: 2,000
