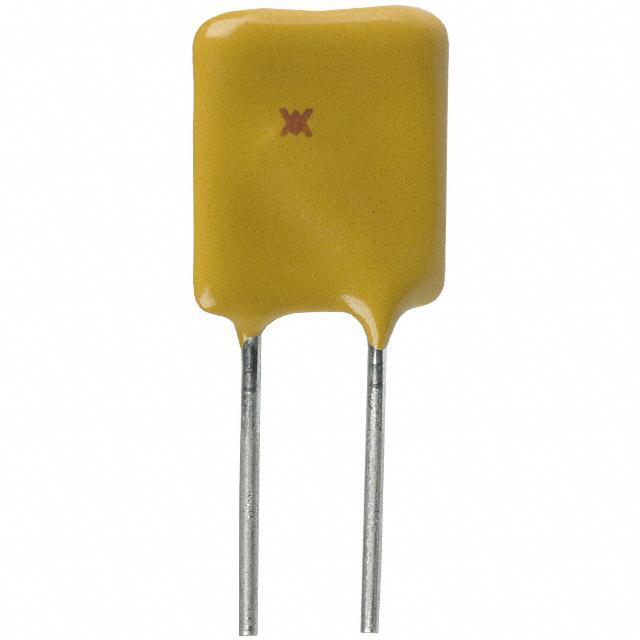

Same model may have multiple batches, images only for reference.
RUEF700-2 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

RUEF700-2

Part No RUEF700-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 7A / Radial PTC Resettable Fuse 30V
Datasheet
RUEF700-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, RUEF
Packaging Reel package
Type Polymeric
Voltage - Max 30V
Current - Max 100A
Current - Hold (Ih) (Maximum) 7A
Current - Trip (It) 14A
Time to Trip 17.5s
Resistance - Initial (Ri) (Minimum) 5 mOhm
Resistance - Post Trip (R1) (Maximum) 30 mOhm
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.752" L x 0.118" W (19.10mm x 3.00mm)
Height - Seated (Maximum) 1.020" (25.90mm)
Lead Spacing 0.400" (10.15mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 793454-RUEF700-2
Popularity Medium
Supply and Demand Status Limited
Family Name RUEF
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian RUEF700-2 CAD Model

Description

The Littelfuse Inc. RUEF700-2 is a PolySwitch from Littelfuse Inc.

  • Voltage: 30V
  • Current: 100A
  • Current Trip (It): 14A
  • Time to Trip: 17.5s
  • Current Hold (Ih): 7A
  • Initial Resistance (Ri): 5 mOhm
  • Post-Trip Resistance (R1): 30 mOhm
  • Operating Temperature: -40°C to 85°C
  • Approvals: CQC, CSA, TUV, UL
  • Package: Radial, disc
  • Lead Spacing: 0.400 inches (10.15mm)
  • Length: 0.752 inches (19.10mm)
  • Width: 0.118 inches (3.00mm)
  • Mounting Type: Through-hole
  • Supply and Demand: Limited
