Same model may have multiple batches, images only for reference.

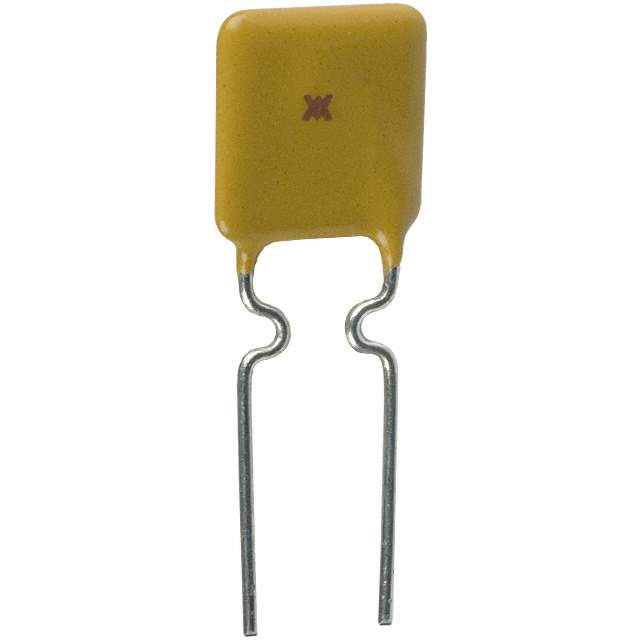

RUEF110S Real Image
Same model may have multiple batches, images only for reference.

RUEF110S

Part No RUEF110S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 1.1A RADIAL / Polymeric PTC Resettable Fuse 30V 1.1 A Ih Through Hole Radial, Disc
Datasheet
RUEF110S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, RUEF
Package Bag
Type Polymeric
Voltage - Max 30V
Current - Max 100 A
Current - Hold (Ih) (Max) 1.1 A
Current - Trip (It) 2.2 A
Time to Trip 6.6 s
Resistance - Initial (Ri) (Min) 70 mOhms
Resistance - Post Trip (R1) (Max) 170 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.291" L x 0.118" W (7.40mm x 3.00mm)
Height - Seated (Max) 0.559" (14.20mm)
Lead Spacing 0.199" (5.05mm)
Approval Agency CQC, CSA, TUV, UL
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
Other Names -RUEF110S-ND,RF2555-000,RF0561-000,-RUEF110SHF,-RUEF110S,RUEF110SHF
Standard Package 500
Win Source Part Number 1019702-RUEF110S
Ultra Librarian 3D Model Ultra Librarian RUEF110S CAD Model

Description

The Littelfuse Inc. 1019702-RUEF110S is a PTC resettable fuse electronic component from the PolySwitch® RUEF series.

  • Series: PolySwitch® RUEF
  • Type: Polymeric
  • Package: Bag
  • Mounting Type: Through Hole
  • Height: 0.559" (14.20mm)
  • Lead Spacing: 0.199" (5.05mm)
  • Voltage - Max: 30V
  • Current - Max: 100A
  • Current - Hold (Ih) (Max): 1.1A
  • Current - Trip (It): 2.2A
  • Time to Trip: 6.6s
  • Operating Temperature: -40°C ~ 85°C
  • Dimension: 0.291" L x 0.118" W (7.40mm x 3.00mm)
  • Initial Resistance (Ri) (Min): 70 mOhms
  • Approvals: CQC, CSA, TUV, UL
