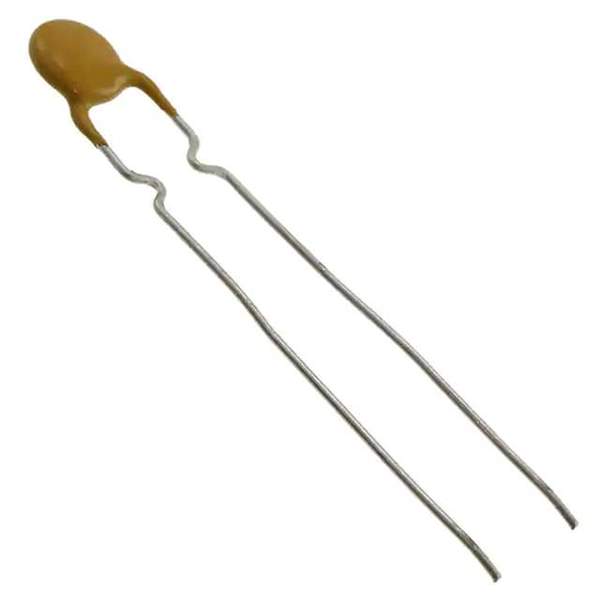

RHEF050 Real Image
Same model may have multiple batches, images only for reference.

RHEF050

Part No RHEF050
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 500MA RADIAL
Datasheet
RHEF050 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, RHEF
Package Bag
Product Status Active
Type Polymeric
Voltage - Max 30V
Current - Hold (Ih) (Max) 500 mA
Current - Trip (It) 920 mA
Current - Max 40 A
Time to Trip 2.5 s
Resistance - Initial (Ri) (Min) 480 mOhms
Resistance - Post Trip (R1) (Max) 1.1 Ohms
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) 0.500" (12.70mm)
Lead Spacing 0.199" (5.05mm)
Approval Agency CSA, TUV, UL
Standard Package 500 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 660268-RHEF050
Ultra Librarian 3D Model Ultra Librarian RHEF050 CAD Model

Description

The RHEF050 is a PolySwitch resettable fuse from Littelfuse Inc. RHEF050 is part of the PolySwitch RHEF series, which is designed for circuit protection in electronic devices.

  • Maximum Voltage Rating: 30V
  • Maximum Current Rating: 40A
  • Mounting Type: Through-Hole
  • Package: Radial, Disc
  • Time to Trip: 2.5 seconds
  • Resistance: 480 mOhms
  • Operating Temperature: -40°C to 125°C
  • Approvals: CSA, TUV, and UL
