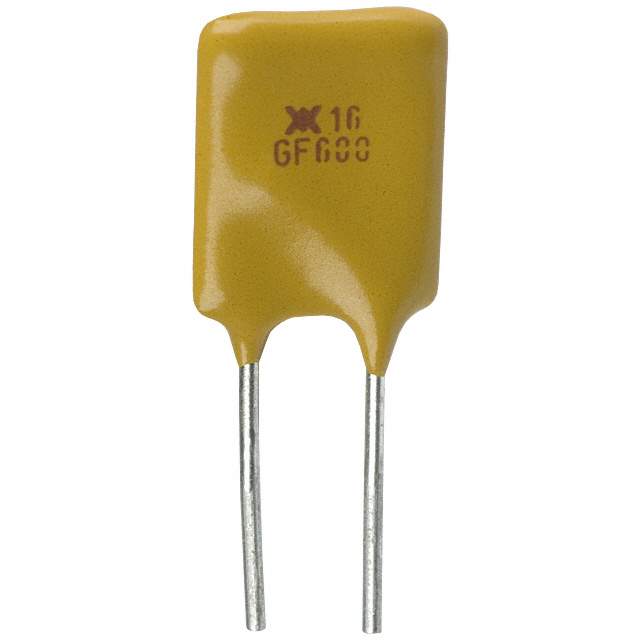

RGEF600K-AP Real Image
Same model may have multiple batches, images only for reference.

RGEF600K-AP

Part No RGEF600K-AP
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 6A RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Tape & Box (TB)
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 6A
Current - Trip (It) 10.2A
Time to Trip 3.3s
Resistance - Initial (Ri) (Min) 10 mOhms
Resistance - Post Trip (R1) (Maximum) 28 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Dimension 0.421" L x 0.098" W (10.70mm x 2.50mm)
Height - Seated (Maximum) 0.709" (18.00mm)
Lead Spacing 0.199" (5.05mm)
Approvals CSA, TUV, UL
Manufacturer Pack Quantity 2,000
MSL Level Not Applicable
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801088-RGEF600K-AP
Ultra Librarian 3D Model Ultra Librarian RGEF600K-AP CAD Model

Description

The Littelfuse Inc. RGEF600K-AP is a polymeric through-hole fuse with CSA, TUV, and UL approvals.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Current Trip: 10.2A
  • Time to Trip: 3.3s
  • Resistance: 10mOhms
  • Post-Trip Resistance: 28mOhms
  • Package Dimension: 0.421" L x 0.098" W (10.70mm x 2.50mm)
  • Packaging: Tape and Box
  • Applications: Overcurrent Protection
