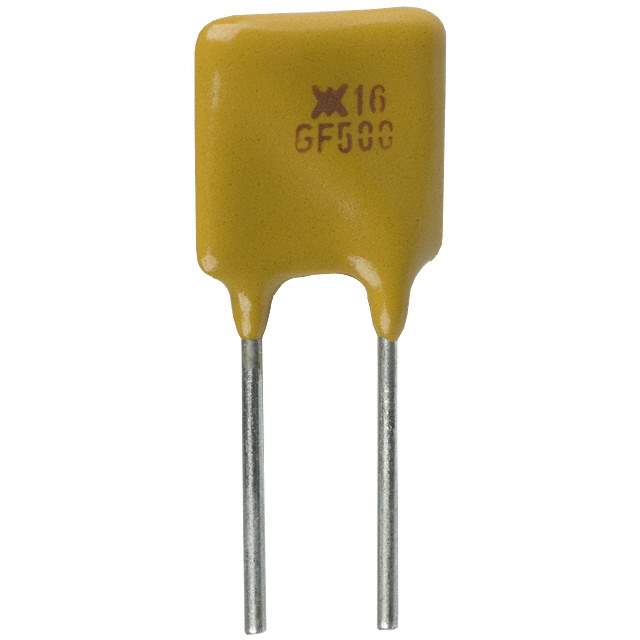

Same model may have multiple batches, images only for reference.

RGEF500-2

Name: RGEF500-2
Brand: Littelfuse Inc.
SKU: 793168
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RGEF500-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	POLYSWITCH PTC RESET 5A HLD / PTC Resettable Fuse 5A(hold) 8.5A(trip) 16VDC 100A 2.6W 2s 0.015Ohm Radial 10.4 X 3 X 14.3mm T/R
Datasheet	RGEF500-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Series	PolySwitch, RGEF
Packaging	Reel package
Type	Polymeric
Voltage - Max	16V
Current - Max	100A
Current - Hold (Ih) (Maximum)	5A
Current - Trip (It)	8.5A
Time to Trip	2s
Resistance - Initial (Ri) (Minimum)	15 mOhm
Resistance - Post Trip (R1) (Maximum)	34 mOhm
Operating Temperature Range	-40°C ~ 85°C
Mounting Style	Through Hole
Package	Radial, Disc
Dimension	0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Maximum)	0.563" (14.30mm)
Lead Spacing	0.199" (5.05mm)
Approvals	CSA, TUV, UL
Win Source Part Number	793168-RGEF500-2
Popularity	Medium
Supply and Demand Status	Limited
Family Name	RGEF
Introduction Date	November 09, 2015
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	Not Applicable
Ultra Librarian 3D Model	Ultra Librarian RGEF500-2 CAD Model

Description

The Littelfuse Inc. RGEF500-2 is a through-hole polymeric type PolySwitch designed for circuit protection.

Approvals: CSA, TUV, and UL
Voltage Max: 16V
Current Max: 100A
Current Trip (It): 8.5A
Time to Trip: 2s
Resistance - initial (Ri) (minimum): 15 mOhm
Resistance - post trip (R1) (maximum): 34 mOhm
Height - seated (maximum): 0.563" (14.30mm)
Introduction Date: November 09, 2015
Country of Origin: China
Supply and Demand Status: Limited
