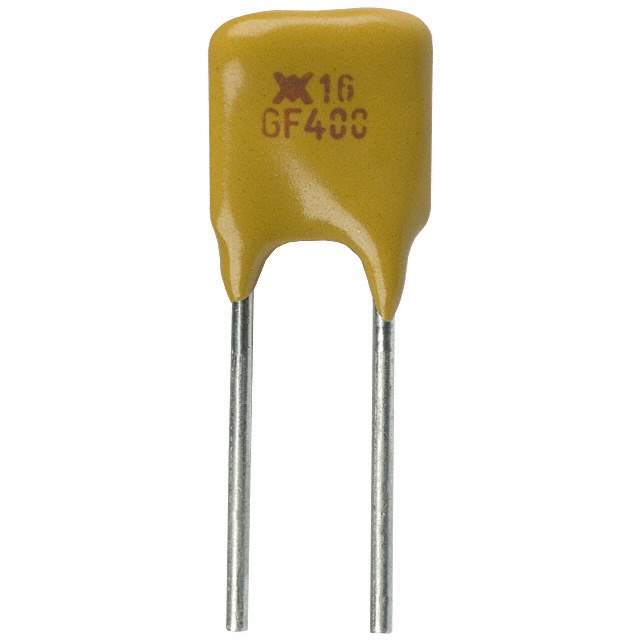

RGEF400 Real Image
Same model may have multiple batches, images only for reference.

RGEF400

Part No RGEF400
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH RGE SERIES 4.0A HOLD
Datasheet
RGEF400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Max) 4A
Current - Trip (It) 6.8A
Time to Trip 1.7s
Resistance - Initial (Ri) (Min) 21 mOhm
Resistance - Post Trip (R1) (Max) 60 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.331" L x 0.098" W (8.40mm x 2.50mm)
Height - Seated (Max) 0.504" (12.80mm)
Lead Spacing 0.199" (5.05mm)
Approvals CSA, TUV, UL
Win Source Part Number 1042288-RGEF400
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RGEF400 CAD Model

Description

The Littelfuse Inc. 1042288-RGEF400 is a polymeric positive temperature coefficient (PPTC) device with a maximum voltage of 16V and a maximum current of 100A.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Resistance (initial): 21 mOhm
  • Resistance (post trip): 60 mOhm
  • Current Hold: 4A
  • Current Trip: 6.8A
  • Time to Trip: 1.7s
  • Mounting: through-hole mounting
  • Dimension: 0.331" L x 0.098" W (8.40mm x 2.50mm)
  • Supply and Demand Status: sufficient
