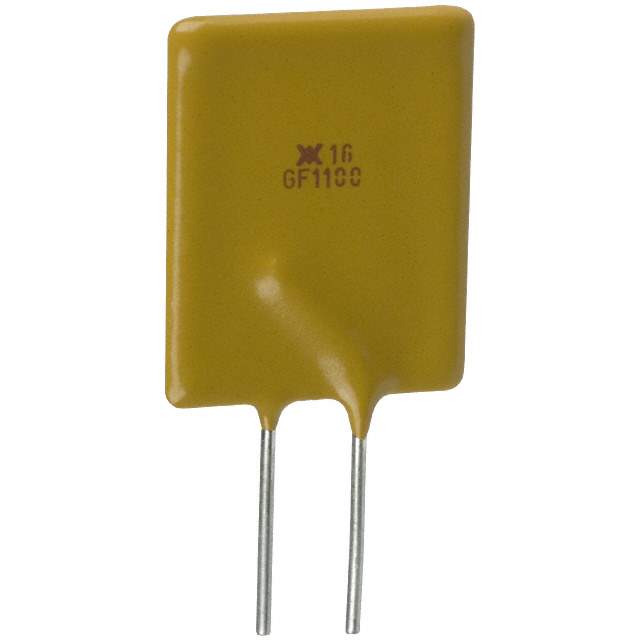

RGEF1100-2 Real Image
Same model may have multiple batches, images only for reference.

RGEF1100-2

Part No RGEF1100-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 11A HLD / PTC Resettable Fuse 11A(hold) 18.7A(trip) 16VDC 100A 3.7W 7s 0.0037Ohm Radial 17.5 X 3 X 26mm T/R
Datasheet
RGEF1100-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, RGEF
Packaging Reel package
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 11A
Current - Trip (It) 18.7A
Time to Trip 7s
Resistance - Initial (Ri) (Minimum) 3.7 mOhm
Resistance - Post Trip (R1) (Maximum) 8.9 mOhm
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.669" L x 0.098" W (17.00mm x 2.50mm)
Height - Seated (Maximum) 1.024" (26.00mm)
Lead Spacing 0.199" (5.05mm)
Approvals CSA, TUV, UL
Win Source Part Number 793186-RGEF1100-2
Popularity Medium
Supply and Demand Status Limited
Family Name RGEF
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian RGEF1100-2 CAD Model

Description

The Littelfuse Inc. PolySwitch RGEF1100-2 is a polymeric type circuit protection device that operates at a maximum voltage of 16V and a maximum current of 100A.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Current Trip: 18.7A
  • Time to Trip: 7s
  • Approvals: CSA, TUV and UL
  • Dimension: 0.669" L x 0.098" W (17.00mm x 2.50mm)
