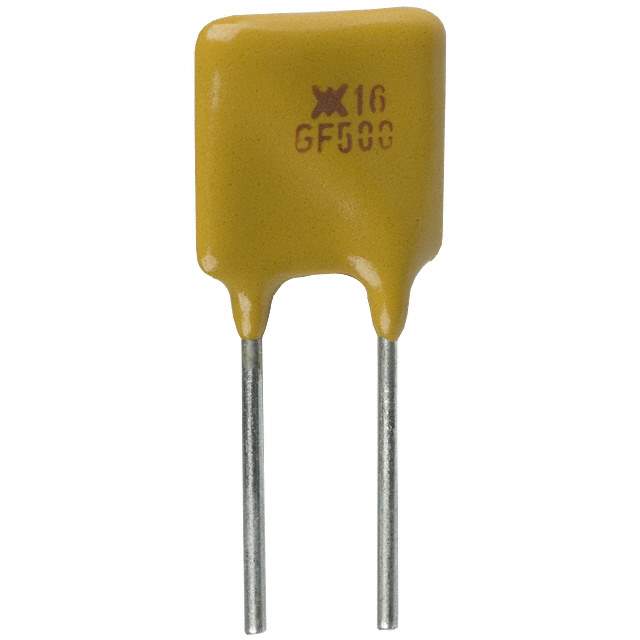

RGE500 Real Image
Same model may have multiple batches, images only for reference.

RGE500

Part No RGE500
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 16V 5A RADIAL / Polymeric PTC Resettable Fuse 16V 5 A Ih Through Hole Radial, Disc
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®
Package Bulk
Product Status Obsolete
Type Polymeric
Voltage - Max 16V
Current - Max 100 A
Current - Hold (Ih) (Max) 5 A
Current - Trip (It) 8.5 A
Time to Trip 2 s
Resistance - Initial (Ri) (Min) 15 mOhms
Resistance - Post Trip (R1) (Max) 34 mOhms
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.390" L x 0.098" W (9.90mm x 2.50mm)
Height - Seated (Max) 0.563" (14.30mm)
Lead Spacing 0.199" (5.05mm)
Approval Agency CSA, TUV, UL
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Standard Package 500
Win Source Part Number 1088301-RGE500
Ultra Librarian 3D Model Ultra Librarian RGE500 CAD Model

Description

The Littelfuse Inc. 1088301-RGE500 is a PTC resettable fuse that belongs to the PolySwitch® series.

  • Manufacturer: Littelfuse Inc.
  • Series: PolySwitch®
  • Type: Polymeric PTC Resettable Fuse
  • Packaging: Bulk
  • Standard Package: 500
  • Seated Height: 0.563" (14.30mm)
  • Lead Spacing: 0.199" (5.05mm)
  • Voltage Rating: 16V
  • Current Rating: 100A
  • Maximum Current Hold (Ih): 5A
  • Current Trip (It): 8.5A
  • Time to Trip: 2s
  • Mounting Type: Through Hole
  • Case/Package: Radial, Disc
  • Resistance - Initial (Ri) (Min): 15 mOhms
  • Resistance - Post Trip (R1) (Max): 34 mOhms
  • Approvals: CSA, TUV, UL
