Same model may have multiple batches, images only for reference.

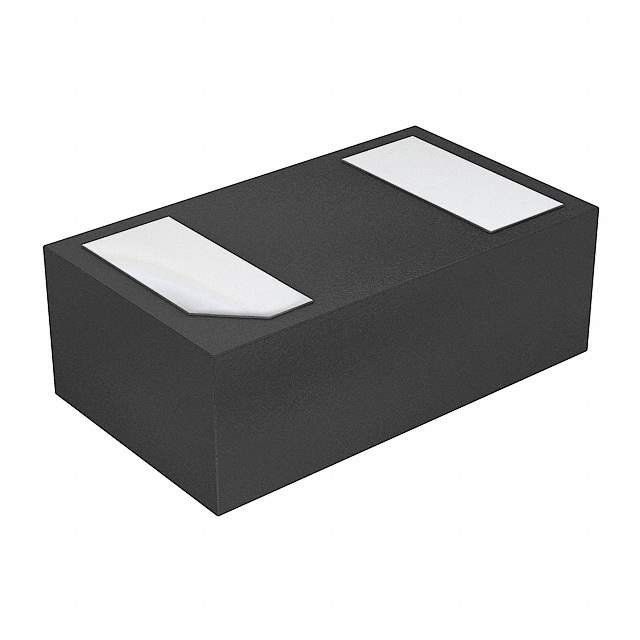

RF2945-000 Real Image
Same model may have multiple batches, images only for reference.

RF2945-000

Part No RF2945-000
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description SESD Ultra Low Capacitance Discrete TVS Series -, 0402 DFN, RoHS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Breakdown Voltage 9.8 V
Capacitance 100 fF
Clamping Voltage 10 V
Direction Bidirectional
Height 430 µm
Leakage Current 50 nA
Maximum Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Channels 1
Peak Pulse Current 2 A
Reverse Standoff Voltage 7 V
RoHS Compliant
Schedule B 8536300000, 8536300000
Win Source Part Number 959929-RF2945-000
Categories TVS - Diodes
Manufacturer Littelfuse Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian RF2945-000 CAD Model

Description

The Littelfuse Inc. 959929-RF2945-000 is a TVS diode that is designed to protect sensitive electronic equipment from voltage transients. Littelfuse Inc. manufactures it.

  • Capacitance: 100 fF
  • Clamping Voltage: 10V
  • Peak Pulse Current: 2A
  • Leakage Current: 50nA
  • Package: Surface-mount
  • Direction: Bidirectional
  • Supply and Demand: Shortage
  • RoHS: Compliant
  • Temperature Range: -55°C to 125°C
