Same model may have multiple batches, images only for reference.

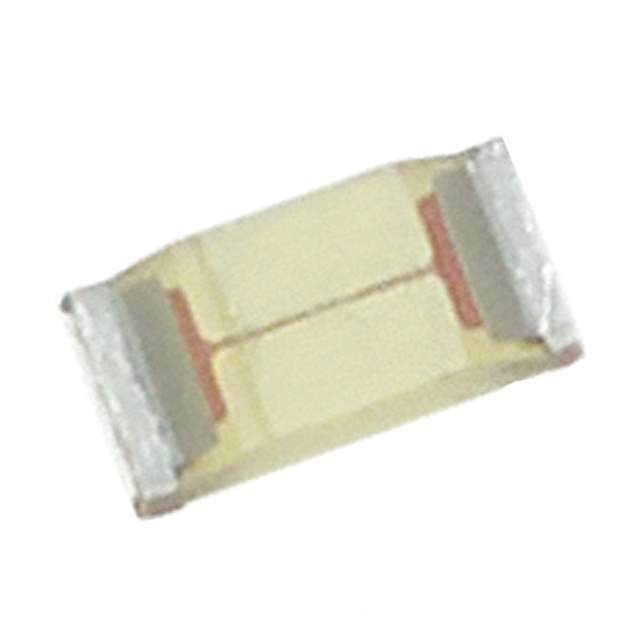

R4291.25 Real Image
Same model may have multiple batches, images only for reference.

R4291.25

Part No R4291.25
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 1.25A 63VAC/VDC
Datasheet
R4291.25 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 1.25A
Voltage Rating - AC 63V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Temperature Range - Operating -55°C to 90°C
Dimension 0.125" L x 0.060" W x 0.045" H (3.18mm x 1.52mm x 1.14mm)
Win Source Part Number 210493-R4291.25
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian R4291.25 CAD Model

Description

The Littelfuse Inc. R4291.25 is a board mount fuse that has a win source part number of 210493-R4291.25.

  • Current Rating: 1.25A
  • Voltage Rating: 63V AC and 63V DC
  • Fuse Type: Board Mount (Cartridge Style Excluded)
  • Response Time: Fast
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Status: Obsolete (EOL)
  • Temperature Range: -55°C to 90°C
  • Dimension: 0.125" L x 0.060" W x 0.045" H (3.18mm x 1.52mm x 1.14mm)
  • Nominal Melting - I2t: Not Available
