Same model may have multiple batches, images only for reference.

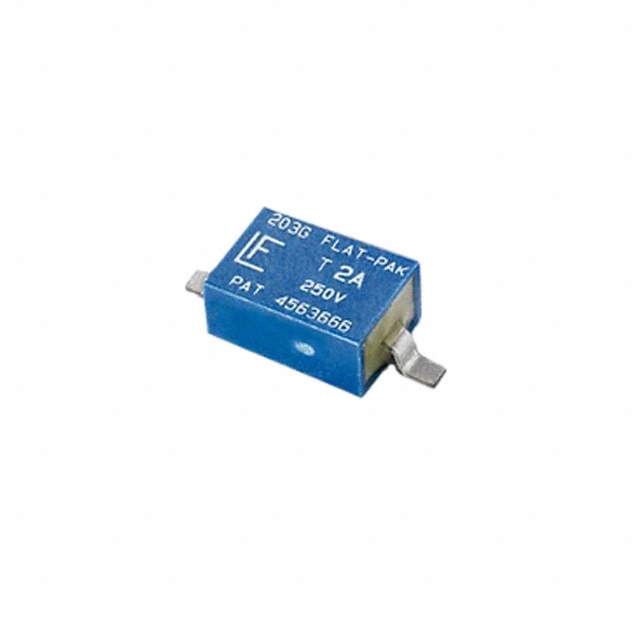

R203005G Real Image
Same model may have multiple batches, images only for reference.

R203005G

Part No R203005G
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 5A 250VAC 2SMD
Datasheet
R203005G Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 5A
Voltage Rating - AC 250V
Response Time Slow
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 14.7
Approvals CSA, UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.0124 Ohm
Win Source Part Number 210485-R203005G
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian R203005G CAD Model

Description

The Littelfuse Inc. 295014 is a board mount fuse designed to provide overcurrent protection to electronic circuits.

  • Current Rating: 5A
  • Voltage Rating: 250V AC
  • Breaking Capacity: 50A @ rated voltage
  • Approvals: CSA and UL
  • Package: SMD (SMT)
  • Application: Circuit Protection
  • Operating Temperature: -55°C to 125°C
  • Nominal Melting - I2t: 14.7
  • Nominal Cold Resistance: 0.0124 Ohm
