Q8025K6TP

Part No Q8025K6TP
Manufacturer Littelfuse Inc.
Catalog Triacs

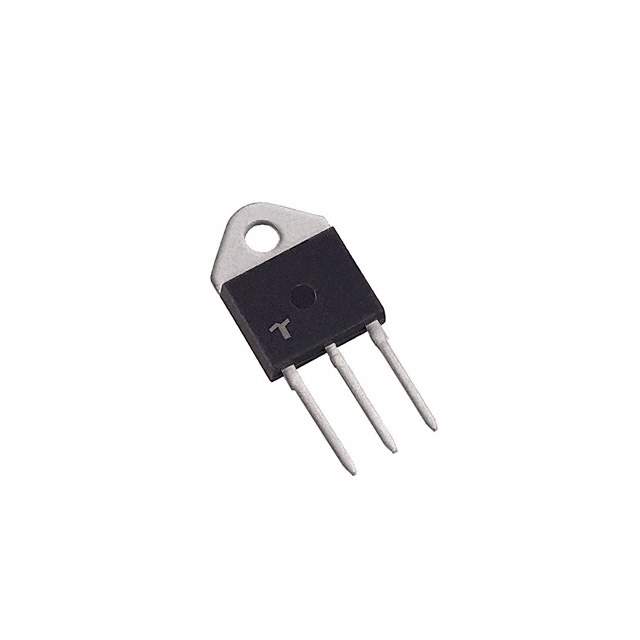

Description TRIAC ALTERNISTOR 800V 25A TO218  /  TRIAC Alternistor - Snubberless 800 V 25 A Through Hole TO-218 Isolated Tab
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - TRIACs
Mfr Littelfuse Inc.
Package Tube
Triac Type Alternistor - Snubberless
Voltage - Off State 800 V
Current - On State (It (RMS)) (Max) 25 A
Voltage - Gate Trigger (Vgt) (Max) 1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm) 208A, 250A
Current - Gate Trigger (Igt) (Max) 80 mA
Current - Hold (Ih) (Max) 100 mA
Configuration Single
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Through Hole
Package / Case TO-218-3 Isolated Tab, TO-218AC
Supplier Device Package TO-218 Isolated Tab
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Other Names Q8025K6,1294-Q8025K6TP,-Q8025K6TP,Q8025K6-ND
Standard Package 250
Win Source Part Number 1006849-Q8025K6TP
Ultra Librarian 3D Model Ultra Librarian Q8025K6TP CAD Model

Description

The Q8025K6TP is a thyristor component that is designed to provide reliable switching and control capabilities for a wide range of applications. With its advanced design and high-performance features, this component is ideal for use in a variety of industrial and commercial applications, including motor control systems, lighting systems, and power supplies. The Q8025K6TP is part of a series of thyristors that are known for their high performance and durability. It is designed to meet the needs of modern electronic devices and is compatible with a wide range of operating systems and platforms.
