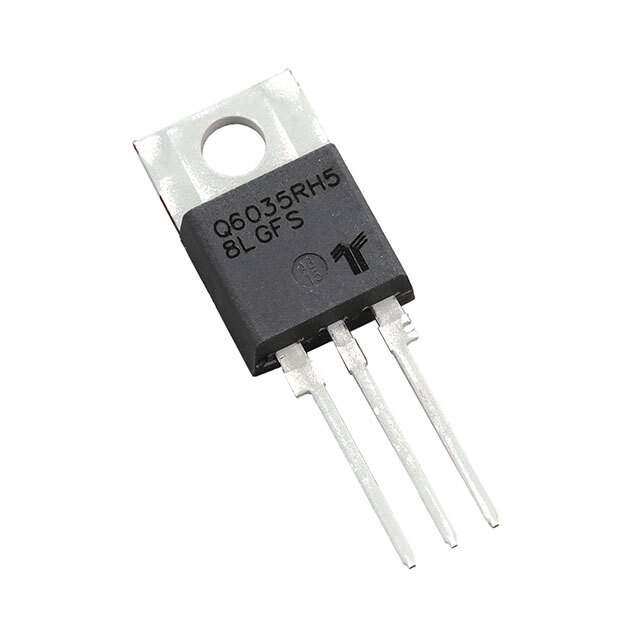

Q6035RH5TP Real Image
Same model may have multiple batches, images only for reference.

Q6035RH5TP

Part No Q6035RH5TP
Manufacturer Littelfuse Inc.
Catalog Triacs
Description ALTNSTR 600V 25 A 50-50-50 MA TO / TRIAC Alternistor - Snubberless 600 V 35 A Through Hole TO-220 Non-Isolated Tab
Datasheet
Q6035RH5TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - TRIACs
Mfr Littelfuse Inc.
Package Tube
Triac Type Alternistor - Snubberless
Voltage - Off State 600 V
Current - On State (It (RMS)) (Max) 35 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Non Rep. Surge 50, 60Hz (Itsm) 290A, 350A
Current - Gate Trigger (Igt) (Max) 50 mA
Current - Hold (Ih) (Max) 75 mA
Configuration Single
Temperature Range - Operating -25°C ~ 125°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220 Non-Isolated Tab
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Other Names F9563,-1024-Q6035RH5TP
Standard Package 50
Win Source Part Number 972142-Q6035RH5TP
Ultra Librarian 3D Model Ultra Librarian Q6035RH5TP CAD Model

Description

The 972142-Q6035RH5TP is a single configuration Alternistor - Snubberless Triac designed for use in Discrete Semiconductor Products>Thyristors - TRIACs category.

  • Package: TO-220-3 with a non-isolated tab
  • Maximum Voltage-Off State: 600V
  • Maximum Gate Trigger Voltage: 2V
  • Maximum Current Hold: 75mA
  • Maximum On-State Current: 35A
  • Non-Repetitive Surge Current: 290A @ 50Hz and 350A @ 60Hz
  • Temperature Range: -25°C to 125°C (TJ)
  • Manufacturer: Littelfuse Inc.
