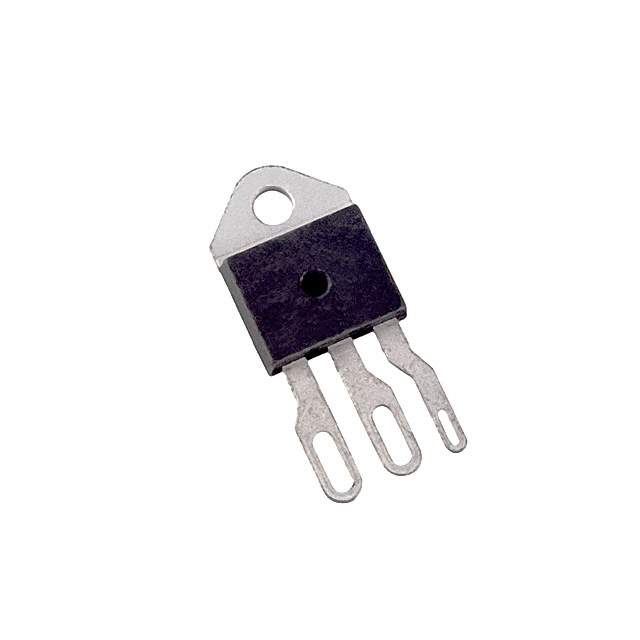

Q6025J6 Real Image
Same model may have multiple batches, images only for reference.

Q6025J6

Part No Q6025J6
Manufacturer Littelfuse Inc.
Catalog Triacs
Description TRIAC ALTERNISTOR 600V TO218X
Datasheet
Q6025J6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Tube/Rail
Status Active
Triac Type Alternistor - Snubberless
Voltage - Off State 600V
Current - On State (It (RMS)) (Max) 25A
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) 208A, 250A
Current - Gate Trigger (Igt) (Max) 80mA
Current - Hold (Ih) (Max) 100mA
Configuration Single
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting Through Hole
Case / Package TO-218X Isolated
Win Source Part Number 045996-Q6025J6
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian Q6025J6 CAD Model

Description

This Littelfuse Inc. electronic component has a part number of 045996-Q6025J6 and comes in tube/rail packaging.

  • Mounted using through hole configuration
  • Current hold (Ih): 100mA
  • Voltage off state: 600V
  • Maximum voltage gate trigger (Vgt): 1.3V
  • Maximum current gate trigger (Igt): 80mA
  • Maximum current on state (It (RMS)): 25A
  • Current non-rep. surge 50, 60Hz (Itsm): 208A, 250A
  • Falls under the category of discrete semiconductor products
  • Active product
  • Temperature range for operating: -40°C to 125°C (TJ)
  • Case/package: TO-218X isolated
  • Supply and demand status is balanced.
