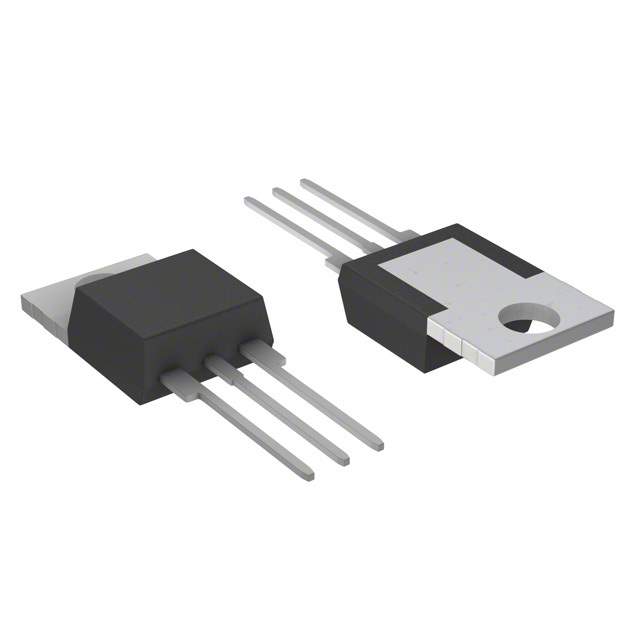

The Littelfuse Inc. Q4010R5TP is a triac type of discrete semiconductor product that has a packaging type of tube and a mounting style of through hole.

• Operating Temperature: -40°C to 125°C (TJ)
• Configuration: Single
• Voltage Off State: 400V
• Current Non-Rep. Surge 50, 60Hz (Itsm): 100A, 120A
• Family Name: Q4010R5
• Manufacturer Package: TO-220 Non-Isolated Tab
• Current on State (It (RMS)) (maximum): 10A
• Voltage Gate Trigger (Vgt) (maximum): 1.3V
• Current Gate Trigger (Igt) (maximum): 50mA
• Current Hold (Ih) (maximum): 50mA
• Supply and Demand Status: Limited
