Same model may have multiple batches, images only for reference.

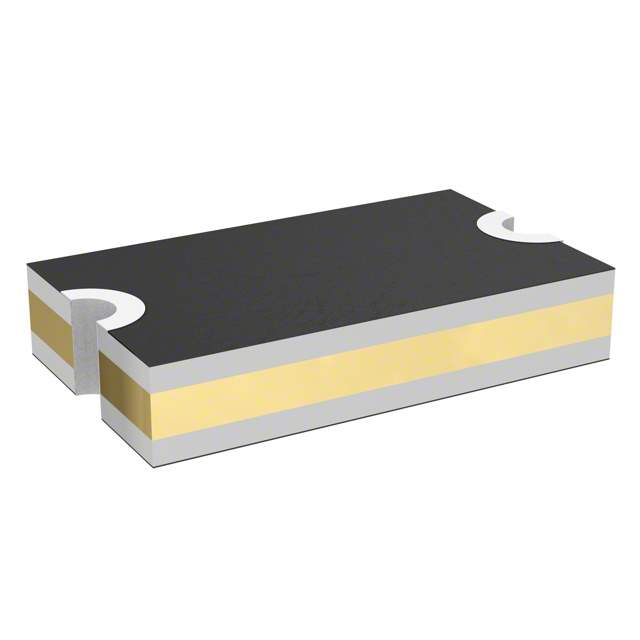

PICOSMDC012S-2 Real Image
Same model may have multiple batches, images only for reference.

PICOSMDC012S-2

Part No PICOSMDC012S-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH .12A RESET FUSE SMD
Datasheet
PICOSMDC012S-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 15V
Current - Max 100A
Current - Hold (Ih) (Max) 120mA
Current - Trip (It) 300mA
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 1.5 Ohm
Resistance - Post Trip (R1) (Max) 9 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.083" L x 0.055" W (2.10mm x 1.40mm)
Thickness (Max) 0.027" (0.68mm)
Approvals CSA, TUV, UL
Win Source Part Number 1089283-PICOSMDC012S-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PICOSMDC012S-2 CAD Model

Description

The Littelfuse Inc. PICOSMDC012S-2 is a polymeric type circuit protection component that is designed to protect against overcurrent events.

  • Type: Polymeric
  • Voltage - Rated: 15V
  • Current - Max: 100A
  • Thickness (Max): 0.027" (0.68mm)
  • Mounting Type: SMD (SMT)
  • Approvals: CSA, TUV, UL
  • Current - Hold (Ih): 120mA
  • Current - Trip (It): 300mA
  • Time to Trip: 100ms
  • Operating Temperature: -40°C ~ 85°C
  • Size / Dimension: 0.083" L x 0.055" W (2.10mm x 1.40mm)
  • Initial Resistance (Ri) (Min): 1.5 Ohm
  • Post Trip Resistance (R1) (Max): 9 Ohm
  • Supply & Demand Status: Balanced
