Same model may have multiple batches, images only for reference.

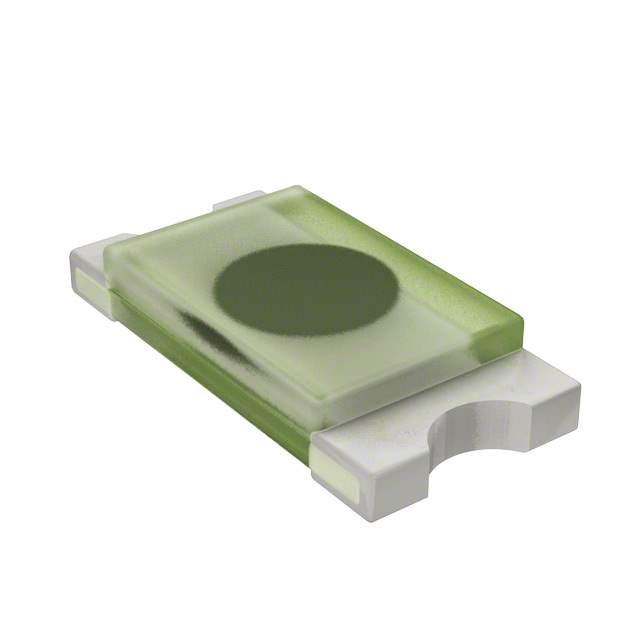

PGB1010603MR Real Image
Same model may have multiple batches, images only for reference.

PGB1010603MR

Part No PGB1010603MR
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 150VC 0603
Datasheet
PGB1010603MR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 24V
Max Clamping Voltage 150V (Typ)
Applications General Purpose
Temperature Range - Operating -65°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 0603 (1608 Metric)
Win Source Part Number 045751-PGB1010603MR
Family Name PGB1010603
Introduction Date January 20, 2004
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Safety, Portable Devices, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian PGB1010603MR CAD Model

Description

The PGB1010603MR is a Zener diode designed by Littelfuse Inc.

  • Package: Surface Mount, 0603 (1608 Metric)
  • Suitable for: Various electronic devices that require circuit protection
  • Popularity: High
  • Status: Common-used part
  • Stand-off Voltage: 24V
  • Max Clamping Voltage: 150V
  • Temperature Range: -65°C to 125°C
