Same model may have multiple batches, images only for reference.

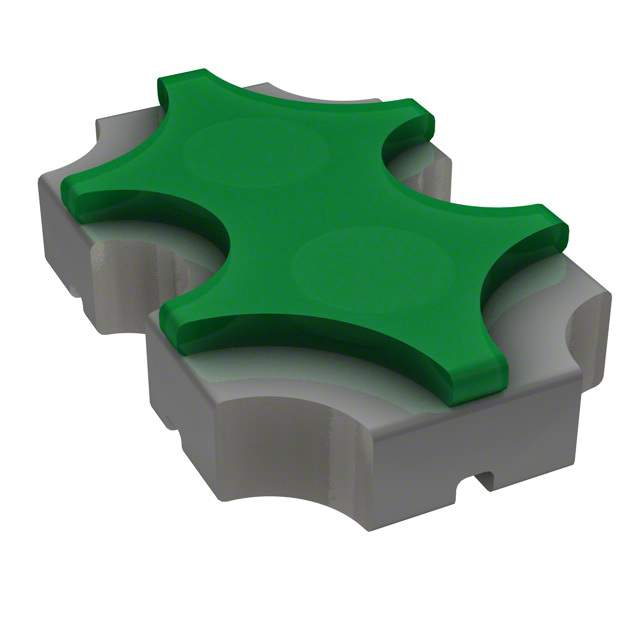

PGB0040805NR Real Image
Same model may have multiple batches, images only for reference.

PGB0040805NR

Part No PGB0040805NR
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 150VC 0805
Datasheet
PGB0040805NR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Bidirectional Channels 4
STAND-OFF Voltage (Vwm) 24V
Max Clamping Voltage 150V (Typ)
Applications General Purpose
Temperature Range - Operating -65°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Win Source Part Number 045750-PGB0040805NR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PGB0040805NR CAD Model

Description

The Littelfuse Inc. PGB0040805NR is an obsolete (EOL), medium popularity, balanced supply and demand fake-threat electronic component.

  • Component Type: Zener diode
  • Mounting: Surface mount
  • Stand-off Voltage: 24V
  • Maximum Clamping Voltage: 150V
  • Maximum Operating Temperature: 125°C
