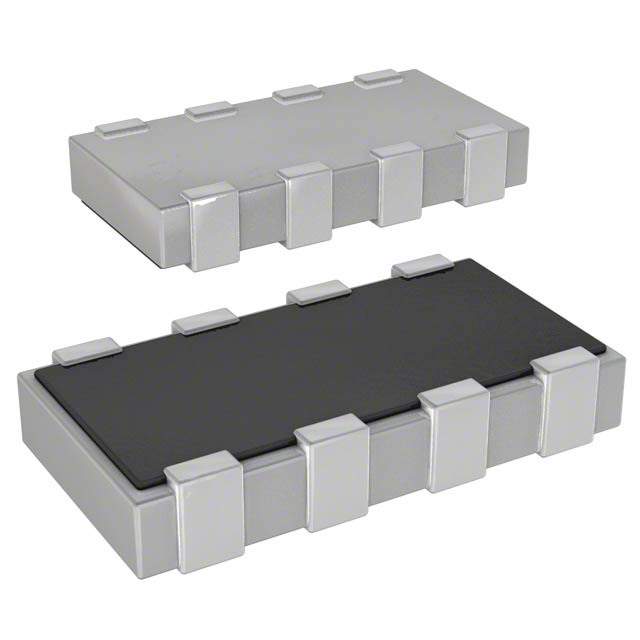

PESD1206Q-240 Real Image
Same model may have multiple batches, images only for reference.

PESD1206Q-240

Part No PESD1206Q-240
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 45VC 1206
Datasheet
PESD1206Q-240 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 4
STAND-OFF Voltage (Vwm) 24V
Max Clamping Voltage 45V
Applications General Purpose
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 1206
Win Source Part Number 1087509-PESD1206Q-240
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Imaging, Video & Vision, Consumer Electronics, Portable Devices, RF Communications, Industrial, Multimedia
Ultra Librarian 3D Model Ultra Librarian PESD1206Q-240 CAD Model

Description

The Littelfuse 436469 is a zener diode designed for use in circuit protection applications.

  • Type: bidirectional
  • Stand-Off Voltage (Vwm): 24V
  • Minimum Breakdown Voltage: Not specified
  • Peak Pulse Current (Ippm): Not specified
  • Power Dissipation (Pd): Not specified
  • Package: 1206
  • Mounting: SMD (SMT) technology
  • Applications: computers and computer peripherals, communications and networking, imaging, video and vision, consumer electronics, portable devices, RF communications, industrial, and multimedia.
