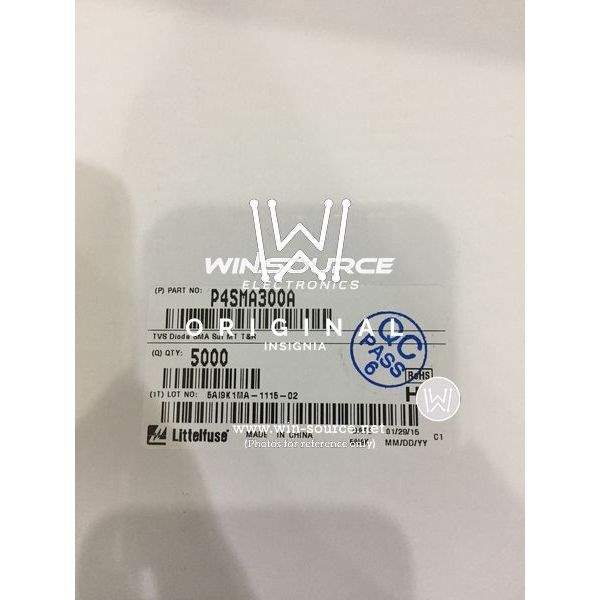

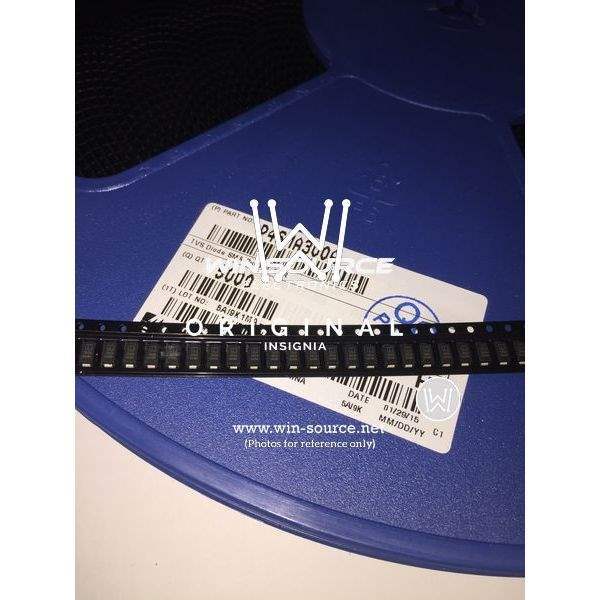

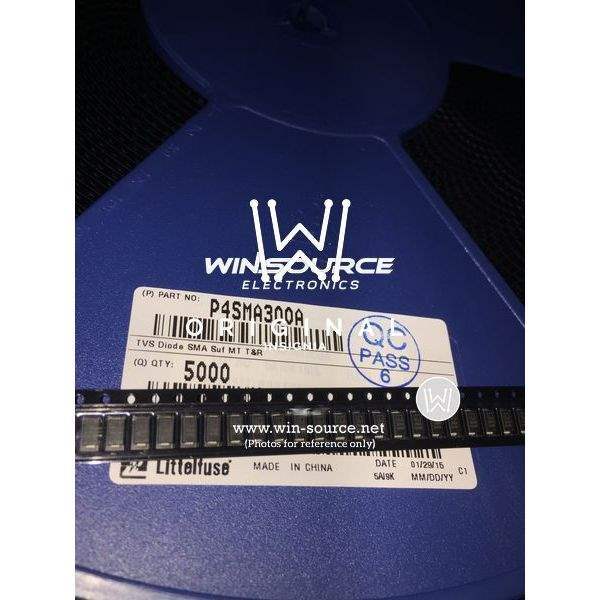

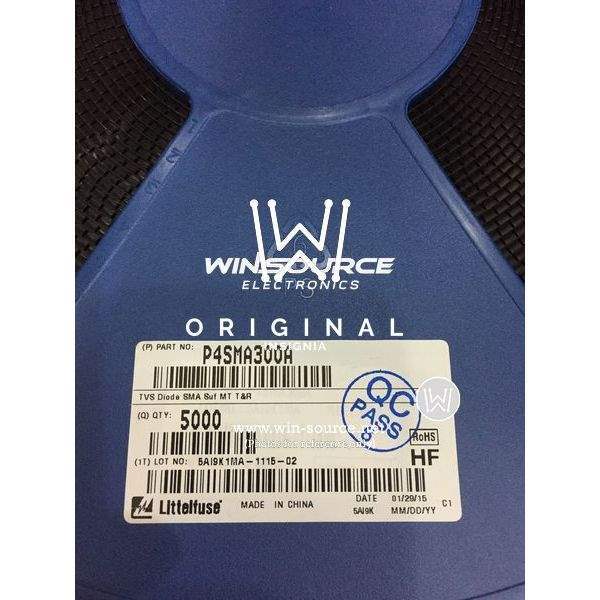

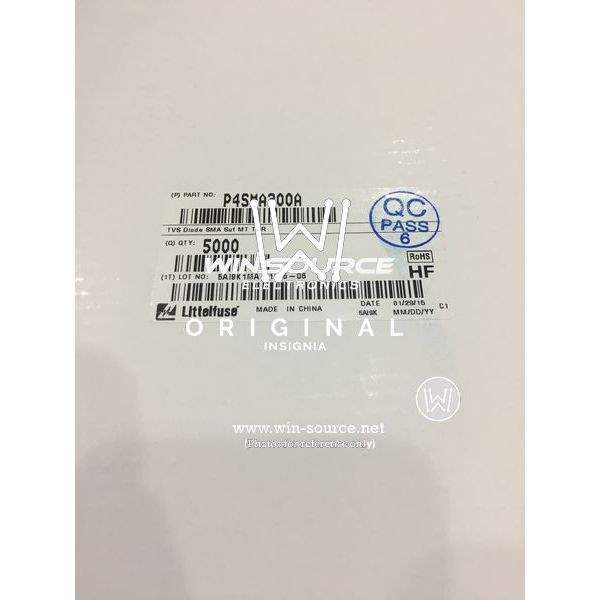

Same model may have multiple batches, images only for reference.

P4SMA300A

Name: P4SMA300A
Brand: Littelfuse Inc.
SKU: 266150
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	P4SMA300A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS Diode Single Uni-Dir 256V 400W 2-Pin SMA T/R / TVS DIODE 256VWM 414VC SMD
Datasheet	P4SMA300A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Zener
Unidirectional Channels	1
STAND-OFF Voltage (Vwm)	256V
Minimum Breakdown Voltage	285V
Max Clamping Voltage	414V
Peak Pulse Current(Ippm)	1A
Power Dissipation - Pd	400W
Applications	General Purpose
Temperature Range - Operating	-65°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	DO-214AC (SMA)
Win Source Part Number	101406-P4SMA300A
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Family Name	P4SMA300A
Introduction Date	June 01, 2005
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian P4SMA300A CAD Model

Alternative Products

Description

The Littelfuse Inc. P4SMA300A is a zener diode that is designed for use in a variety of general-purpose electronic applications.

STAND-OFF Voltage (Vwm): 256V
Minimum Breakdown Voltage: 285V
Maximum Clamping Voltage: 414V
Peak Pulse Current (Ippm): 1A
Power Dissipation: 400W
Package: DO-214AC (SMA) SMD (SMT) package
Operating Temperature Range: -65°C to 150°C (TJ)
Packaging: Available on a reel.
