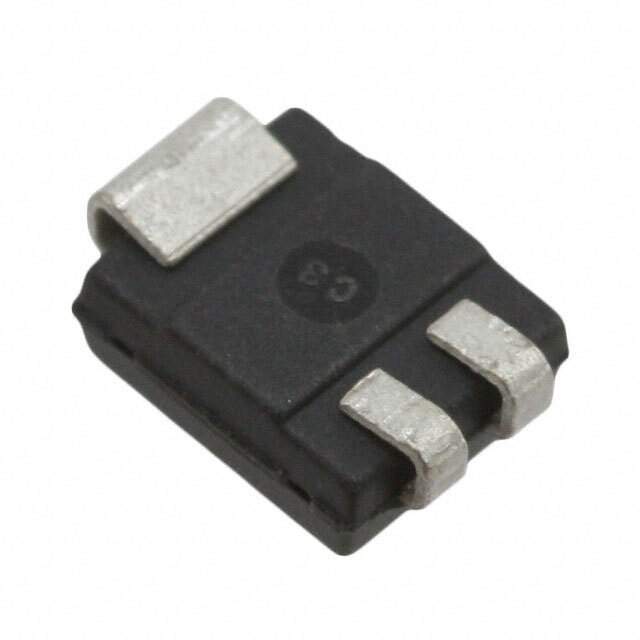

P2202CARP Real Image
Same model may have multiple batches, images only for reference.

P2202CARP

Part No P2202CARP
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description THYRISTOR 90V/180V 150A DO214AA / 90V, 180V Off-State 150 A Ipp TVS Thyristor DO-214AA, SMB (3 Leads), Compak
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Thyristors
Mfr Littelfuse Inc.
Series SIDACtor®
Package Tape & Reel (TR)
Product Status Obsolete
Voltage - Breakover 130V, 260V
Voltage - Off State 90V, 180V
Voltage - On State 4 V
Current - Peak Pulse (8/20µs) 150 A
Current - Peak Pulse (10/1000µs) 45 A
Current - Hold (Ih) 120 mA
Number of Elements 2
Capacitance 30pF, 50pF
Mounting SMD (SMT)
Package / Case DO-214AA, SMB (3 Leads), Compak
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Standard Package 2,500
Win Source Part Number 1083512-P2202CARP
Ultra Librarian 3D Model Ultra Librarian P2202CARP CAD Model

Description

The Littelfuse Inc. P2202CARP is an obsolete electronic component.

  • Component: High capacitance SIDACtor®
  • Voltage Off State: 90V and 180V
  • Voltage Breakover: 130V and 260V
  • Voltage On State: 4V
  • Peak Pulse Current: 45A for 10/1000µs and 150A for 8/20µs
  • RoHS: Non-compliant
