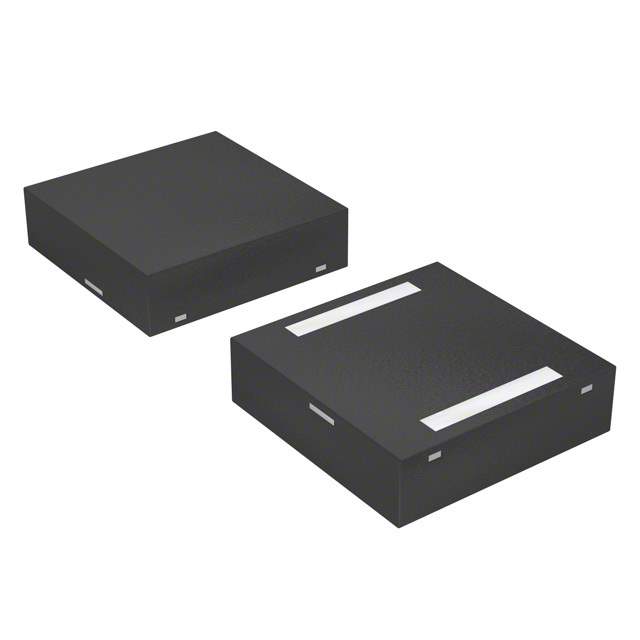

P1500Q12ALRP Real Image
Same model may have multiple batches, images only for reference.

P1500Q12ALRP

Part No P1500Q12ALRP
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description SIDACTOR BI 180V 150A QFN SMD
Datasheet
P1500Q12ALRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Voltage - Breakover 180V
Voltage - Off State 140V
Voltage - On State 5V
Current - Peak Pulse (8/20μs) 150A
Peak Pulse Current(Ippm) 45A
Current - Hold (Ih) 150mA
Number of Elements 1
Capacitance 40pF
Mounting SMD (SMT)
Dimension 2-TDFN
Win Source Part Number 209558-P1500Q12ALRP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P1500Q12ALRP CAD Model

Description

The Littelfuse Inc. P1500Q12ALRP thyristor is a high-quality component designed for use in various electronic applications.

  • Elements: Single-element
  • Capacitance: 40pF
  • Voltage (Off-State): 140V
  • Voltage (On-State): 5V
  • Breakover Voltage: 180V
  • Peak Pulse Current: 150A (8/20μs)
  • Hold Current: 150mA
  • Mounting: Surface-mounting
  • Package: 2-TDFN
  • Supply and Demand Status: Balanced
