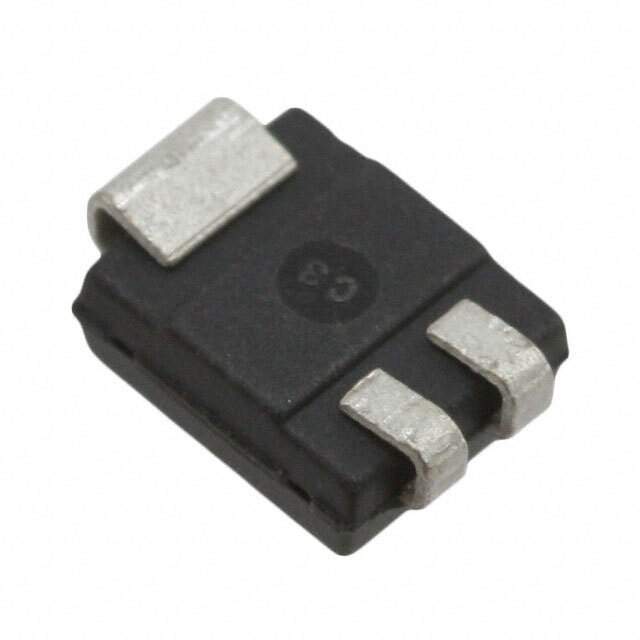

The P1101CA2LRP is a SIDACtor® Protection Thyristor from Littelfuse, designed for overvoltage protection in various telecommunications and data communication applications. This device is engineered to safeguard sensitive equipment from transient voltage surges, ensuring reliable operation and preventing costly damage.

Applications

• Central Office Equipment
• Customer Premises Equipment (CPE)
• Data Communication Interfaces
• Broadband Equipment
• General Telecom Equipment

Features

• Low Voltage Overshoot: Limits voltage overshoot during surge events for enhanced protection.
• High Surge Current Capability: Robust design handles high surge currents without degradation.
• Low On-State Voltage: Minimizes voltage drop during conduction, improving system performance.
• Fail-Safe Protection: Provides reliable protection even under extreme surge conditions.
• RoHS Compliant: Environmentally friendly, meeting RoHS standards.
• Low Capacitance: Minimizes signal distortion in high-speed data communication.

Benefits

• Enhanced System Reliability: Protects sensitive equipment from voltage transients, ensuring continuous operation.
• Reduced Downtime: Minimizes the risk of equipment failure due to surges, reducing downtime and maintenance costs.
• Improved Signal Integrity: Low capacitance ensures minimal signal distortion, maintaining data integrity.
• Cost-Effective Protection: Provides a cost-effective solution for overvoltage protection, preventing costly damage to equipment.
• Compliance with Standards: Meets industry standards for safety and performance.

Additional Details

The P1101CA2LRP features a breakover voltage of 110V and is designed to handle a surge current of up to 50A. Its low on-state voltage ensures efficient operation, while its fast response time provides rapid protection against transient events. This SIDACtor is available in a DO-214AA (SMB) package, making it suitable for surface mount assembly. The device is specifically designed to protect against lightning surges and power cross conditions in telecommunications applications. The robust construction and reliable performance of the P1101CA2LRP make it an ideal choice for protecting sensitive electronic equipment in demanding environments.

The device's clamping voltage is carefully controlled to ensure that the protected circuitry is not exposed to damaging voltage levels. Littelfuse's SIDACtor technology provides a solid-state protection solution that offers superior performance compared to traditional protection methods. Its compact size and ease of installation make it suitable for a wide range of applications. By incorporating the P1101CA2LRP into your design, you can significantly improve the reliability and longevity of your electronic equipment, reducing the risk of failure and minimizing downtime.
