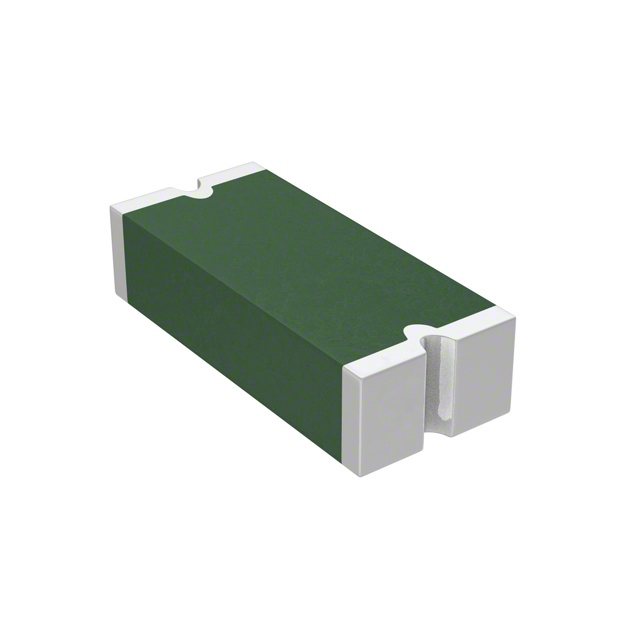

Same model may have multiple batches, images only for reference.
NANOSMD270LR-2 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

NANOSMD270LR-2

Part No NANOSMD270LR-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 2.7A 1206 / PolySwitch PTC Devices
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 6V
Current - Max 50A
Current - Hold (Ih) (Maximum) 2.7A
Current - Trip (It) 6.3A
Time to Trip 5s
Resistance - Initial (Ri) (Min) 5 mOhms
Mounting Style SMD
Manufacturer Package 1206 (3216 Metric)
Dimension 0.127" L x 0.063" W (3.22mm x 1.61mm)
Thickness (Maximum) 0.039" (1.00mm)
Approvals CSA, TUV, UL
Manufacturer Pack Quantity 3,000
MSL Level 2A (4 Weeks)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805476-NANOSMD270LR-2
Ultra Librarian 3D Model Ultra Librarian NANOSMD270LR-2 CAD Model

Description

The NANOSMD270LR-2 is a high-quality polymeric fuse from Littelfuse Inc. It is manufactured by Littelfuse Inc.

  • Package: 1206 (3216 Metric)
  • Approvals: CSA, TUV, UL
