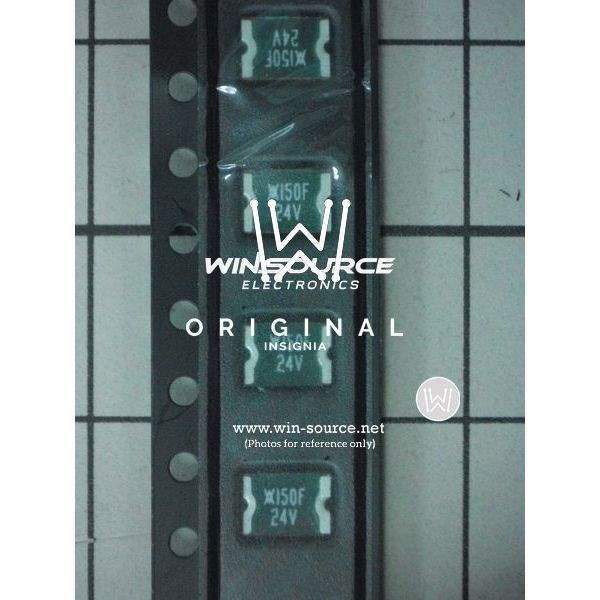

Same model may have multiple batches, images only for reference.

MINISMDC150F/24-2

Name: MINISMDC150F/24-2
Brand: Littelfuse Inc.
SKU: 231267
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MINISMDC150F/24-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	POLYSWITCH RESET 1.5A 24V SMD TR
Datasheet	MINISMDC150F/24-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Polymeric
Voltage - Max	24V
Current - Max	20A
Current - Hold (Ih) (Max)	1.5A
Current - Trip (It)	3A
Time to Trip	1.5s
Resistance - Initial (Ri) (Min)	40 mOhm
Resistance - Post Trip (R1) (Max)	120 mOhm
Temperature Range - Operating	-40°C to 85°C
Mounting	SMD (SMT)
Dimension	0.181" L x 0.128" W (4.60mm x 3.24mm)
Thickness (Max)	0.076" (1.94mm)
Approvals	CSA, TUV, UL
Win Source Part Number	023362-MINISMDC150F/24-2
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Industrial, Computers & Computer Peripherals, Consumer Electronics, Imaging, Video & Vision, Communications & Networking, Automotive
Ultra Librarian 3D Model	Ultra Librarian MINISMDC150F/24-2 CAD Model

Description

The Littelfuse Inc. MINISMDC150F/24-2 is a polymeric type circuit protection device that is approved by CSA, TUV, and UL.

Package Type: reel - TR
Mounting: SMD (SMT) technology
Maximum Voltage: 24V
Maximum Current: 20A
Current Hold (Ih): 1.5A
Current Trip (It): 3A
Time to Trip: 1.5s
Operating Temperature Range: from -40°C to 85°C
Dimension: 0.181" L x 0.128" W (4.60mm x 3.24mm)
Initial Resistance (Ri): 40 mOhm
Post-Trip Resistance (R1): 120 mOhm
