Same model may have multiple batches, images only for reference.

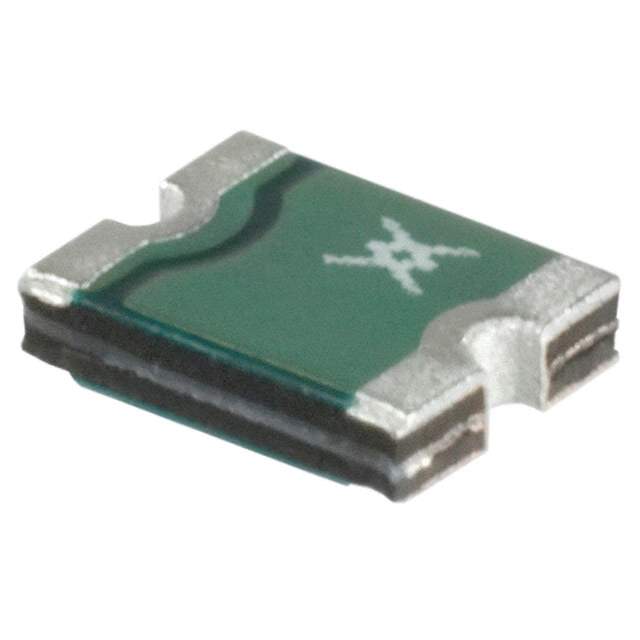

MICROSMDCH010F-02 Real Image
Same model may have multiple batches, images only for reference.

MICROSMDCH010F-02

Part No MICROSMDCH010F-02
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 100MA 1210 / Polymeric PTC Resettable Fuse 30V 100 mA Ih Surface Mount 1210 (3225 Metric), Concave
Datasheet
MICROSMDCH010F-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, microSMD
Package Tape & Reel
Type Polymeric
Voltage - Max 30V
Current - Max 10 A
Current - Hold (Ih) (Max) 100 mA
Current - Trip (It) 350 mA
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 1.2 Ohms
Resistance - Post Trip (R1) (Max) 11 Ohms
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1210 (3225 Metric), Concave
Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max) 0.038" (0.97mm)
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8533.40.8070
Other Names MICROSMDCH010F-02-ND,MICROSMDCH010F-02CT,RF1515-000,1294-MICROSMDCH010F-02,MICROSMDCH010F-02TR,MICROSMDCH010F-02DKR,RF1515-000-ND
Standard Package 3,000
Win Source Part Number 977880-MICROSMDCH010F-02
Ultra Librarian 3D Model Ultra Librarian MICROSMDCH010F-02 CAD Model

Description

The Littelfuse Inc. PolySwitch® microSMD MICROSMDCH010F-02 is a polymeric PTC resettable fuse designed for circuit protection.

  • Package: 1210 (3225 Metric), Concave
  • Mounting: SMD (SMT)
  • Maximum Voltage: 30V
  • Maximum Current: 10A
  • Current Hold: 100mA
  • Current Trip: 350mA
  • Time to Trip: 100ms
  • Initial Resistance: 1.2 Ohms
  • Post-Trip Resistance: 11 Ohms
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
  • Alternative Parts: MICROSMDCH010F-02-ND, MICROSMDCH010F-02CT, RF1515-000, 1294-MICROSMDCH010F-02, MICROSMDCH010F-02TR, MICROSMDCH010F-02DKR, and RF1515-000-ND
