Same model may have multiple batches, images only for reference.

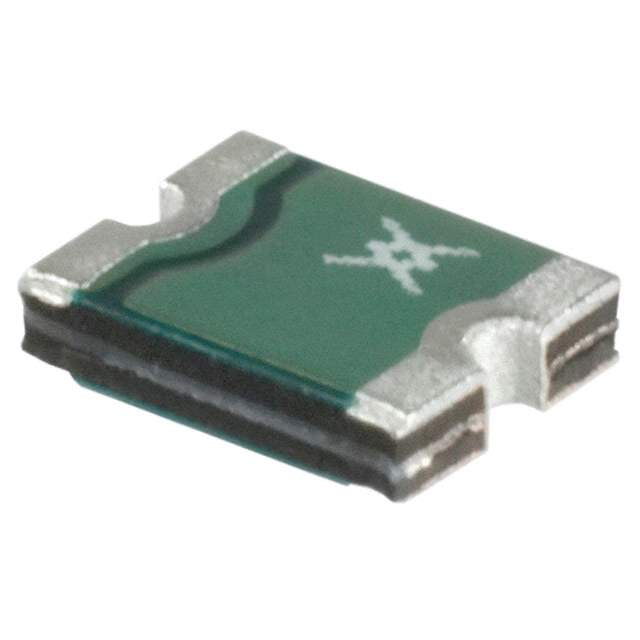

MICROSMD500LR-2 Real Image
Same model may have multiple batches, images only for reference.

MICROSMD500LR-2

Part No MICROSMD500LR-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 5A 1210
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Features Polymeric PTC Resettable Fuse 6V 5 A Ih Surface Mount 1210 (3225 Metric), Concave
Manufacturer Littelfuse Inc.
Series PolySwitch®, microSMD
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 80°C
Mounting Surface Mount
Package 1210 (3225 Metric), Concave
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8533.40.8070
Other Part Number -MICROSMD500LR, MICROSMD500LR-2CT, MICROSMD500LR-2TR, MICROSMD500LR-2DKR, RF4641-000, -MICROSMD500LR-2, -MICROSMD500LR-ND
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 927172-MICROSMD500LR-2
Ultra Librarian 3D Model Ultra Librarian MICROSMD500LR-2 CAD Model

Description

The Littelfuse Inc. PolySwitch® microSMD series resettable fuse is a surface-mount PTC (Positive Temperature Coefficient) polymeric fuse with a voltage rating of 6V and a current rating of 5 A Ih.

  • Operating Temperature Range: -40°C to 80°C
  • Package/Case: 1210 (3225 Metric), Concave
  • Packaging: Reel - TR
  • Quantity per Package: 3000
  • Status: Obsolete
