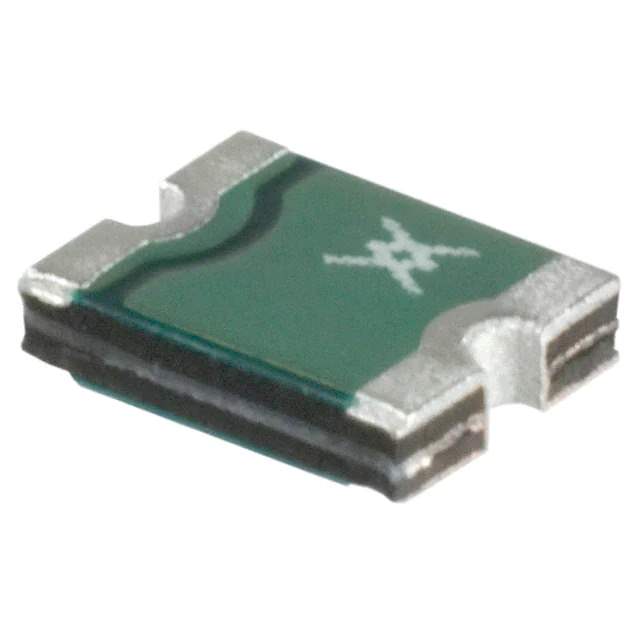

MICROSMD010-2 Real Image
Same model may have multiple batches, images only for reference.

MICROSMD010-2

Part No MICROSMD010-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 100MA 1210
Datasheet
MICROSMD010-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, microSMD
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Type Polymeric
Voltage - Max 30V
Current - Hold (Ih) (Max) 100 mA
Current - Trip (It) 250 mA
Current - Max 10 A
Time to Trip 1 s
Resistance - Initial (Ri) (Min) 2.1 Ohms
Resistance - Post Trip (R1) (Max) 15 Ohms
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric), Concave
Size / Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max) 0.019" (0.48mm)
Approval Agency CSA, TUV, UL
Standard Package 4,000 pcs
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 747453-MICROSMD010-2
Ultra Librarian 3D Model Ultra Librarian MICROSMD010-2 CAD Model

Description

The microSMD010-2 is a PolySwitch resettable fuse from the PolySwitch, microSMD series manufactured by Littelfuse Inc.

  • Manufacturer: Littelfuse Inc.
  • Series: PolySwitch, microSMD
  • Fuse Type: Polymeric Resettable Fuse
  • Maximum Voltage: 30V
  • Maximum Current: 10A
  • Holding Current: 100mA
  • Trip Current: 250mA
  • Mounting Type: Surface Mount
  • Package: 1210 (3225 Metric), Concave
  • Status: Obsolete
  • Approvals: CSA, TUV, UL
