Same model may have multiple batches, images only for reference.

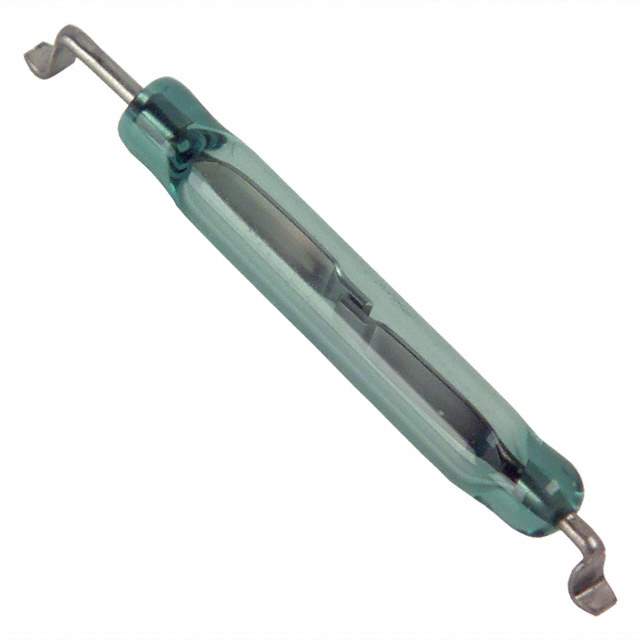

MDSM-4R-12-18 Real Image
Same model may have multiple batches, images only for reference.

MDSM-4R-12-18

Part No MDSM-4R-12-18
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 350MA 140V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 26 Weeks
Features Glass Body Reed Switch SPST-NO 12 ~ 18AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Surface Mount
Manufacturer Littelfuse Inc.
Series MDSM-4
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number HE151CT-NDR, HE151-2-ND, MDSM-4R 12-18, HE151-1-ND, HE151TR, MDSM-4R, HE151DKR, MDSM4R1218, HE151CT, HE151-1, HE151-2
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 884508-MDSM-4R-12-18
Ultra Librarian 3D Model Ultra Librarian MDSM-4R-12-18 CAD Model

Description

The MDSM-4R-12-18 from Littelfuse Inc. is a glass body reed switch designed for use in a variety of electronic applications.

  • Contact Configuration: Single-pole, single-throw normally open
  • Operate Range: 12 ~ 18AT
  • Power Rating: 10W
  • Current (AC): 350mA (AC)
  • Current (DC): 500mA (DC) @ 140V
  • Package: Reel - TR
  • Mounting Type: Surface Mount
  • Series: MDSM-4
  • Estimated Production Lead Time: 26 weeks
  • Supply: Limited
  • Quantity per Package: 3000
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.50.9065
  • Other Part Numbers: HE151CT-NDR, HE151-2-ND, and MDSM-4R 12-18
