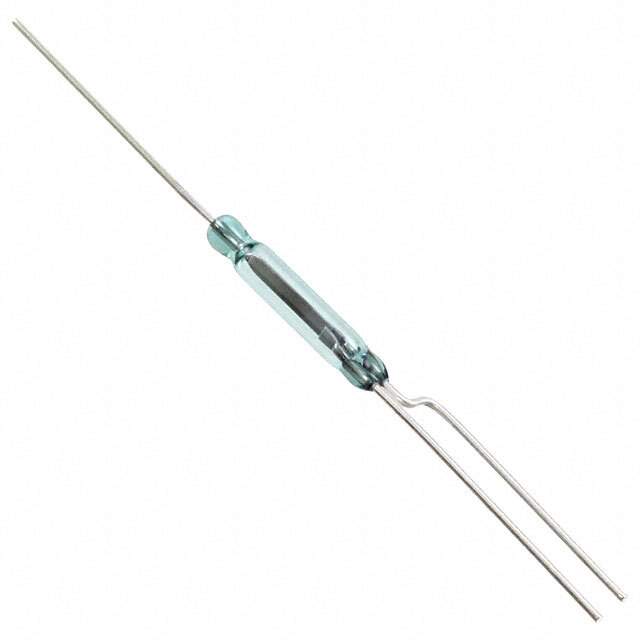

MDRR-DT-20-25-F Real Image
Same model may have multiple batches, images only for reference.

MDRR-DT-20-25-F

Part No MDRR-DT-20-25-F
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPDT 180MA 120V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 42 Weeks
Features Glass Body Reed Switch SPDT 20 ~ 25AT Operate Range 5W 180mA (AC), 250mA (DC) 120 V Through Hole
Manufacturer Littelfuse Inc.
Series MDRR-DT
Package Bulk
Operating Temperature Range -40°C ~ 125°C
Mounting Through Hole
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number MDRR-DT-20-25-F-ND, F7872, MDRR-DT 20-25 F, MDRRDT 2025 F, MDRR-DT 1156 20-25 F, -MDRR-DT-20-25-F, MDRR-DT 20-25 F-ND
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 884505-MDRR-DT-20-25-F
Ultra Librarian 3D Model Ultra Librarian MDRR-DT-20-25-F CAD Model

Description

The MDRR-DT-20-25-F from Littelfuse Inc. is a glass body reed switch SPDT with an operate range of 20 ~ 25AT, 5W, 180mA (AC), 250mA (DC), and 120 V through hole.

  • Configuration: SPDT
  • Operate Range: 20 ~ 25AT
  • Power: 5W
  • Current (AC): 180mA (AC)
  • Current (DC): 250mA (DC)
  • Voltage: 120 V
  • Mounting Type: Through Hole
  • Package: Bulk
  • Supply and Demand Status: Limited
  • Quantity per Package: 1000
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
  • Estimated Production Lead Time: 42 weeks
  • HTSUS: 8536.50.9065
  • Other Part Numbers: MDRR-DT-20-25-F-ND, F7872, MDRR-DT 20-25 F, MDRRDT 2025 F, MDRR-DT 1156 20-25 F, -MDRR-DT-20-25-F, and MDRR-DT 20-25 F-ND
