Same model may have multiple batches, images only for reference.

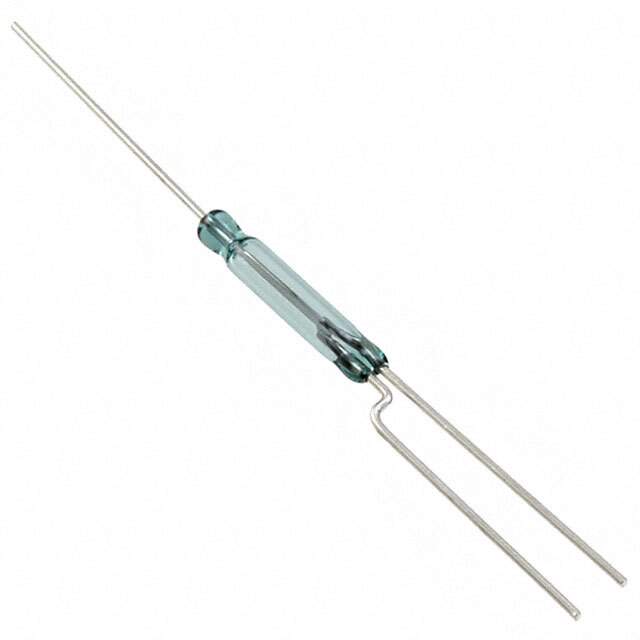

MDRR-DT-10-15-F Real Image
Same model may have multiple batches, images only for reference.

MDRR-DT-10-15-F

Part No MDRR-DT-10-15-F
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPDT 180MA 120V
Datasheet
MDRR-DT-10-15-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Type Glass Body
Circuit SPDT
Operate Range 10 to 15AT
Current - Switching 180mA (AC), 250mA (DC)
Voltage - Switching AC 120V
Voltage - Switching DC 175V
Power - Rated 5W
Operate Time 0.7ms
Release Time 1ms
Mounting Through Hole
Termination Style Axial
Length - Overall 2.034" (51.66mm)
Size - Body 0.100" Dia x 0.580" L (2.54mm x 14.73mm)
Temperature Range - Operating -40°C to 125°C
Capacitance 1pF
Current - Carry 1.5A (DC)
Win Source Part Number 1075754-MDRR-DT-10-15-F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MDRR-DT-10-15-F CAD Model

Description

The MDRR-DT-10-15-F is a glass-body SPDT switch manufactured by Littelfuse Inc.

  • Packaging: bulk packaging
  • Termination Style: axial
  • Mounting Type: through-hole
  • Capacitance: 1pF
  • Power Rating: 5W
  • Range: 10 to 15AT
  • Release Time: 1ms
  • Current-Switching Rating: 180mA (AC) and 250mA (DC)
  • Voltage-Switching Rating: 120V (AC) and 175V (DC)
