Same model may have multiple batches, images only for reference.

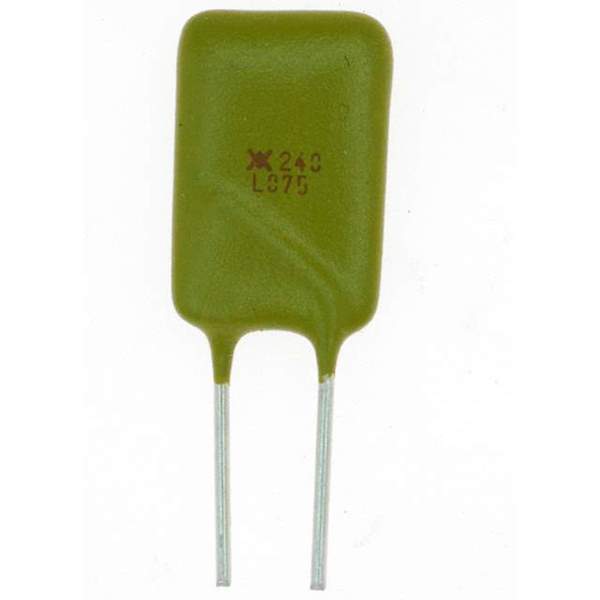

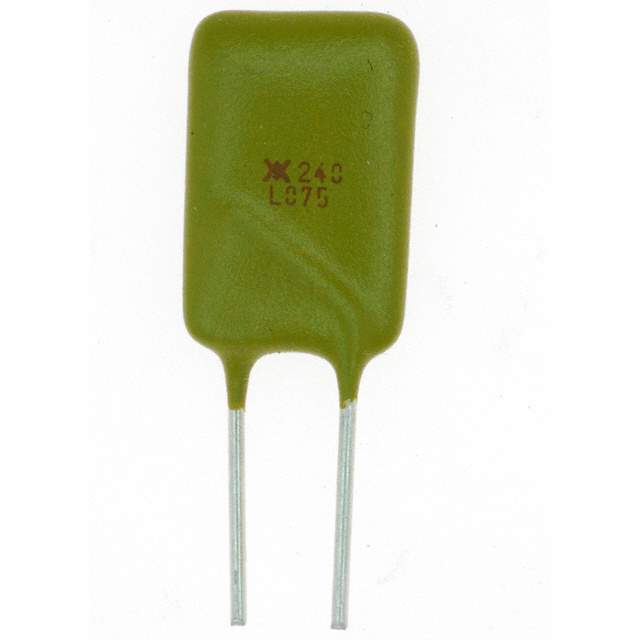

LVR075S Real Image
Same model may have multiple batches, images only for reference.

LVR075S

Part No LVR075S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 240V 0.75A
Datasheet
LVR075S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 7.5A
Current - Hold (Ih) (Max) 750mA
Current - Trip (It) 1.5A
Time to Trip 18s
Resistance - Initial (Ri) (Min) 316 mOhm
Resistance - Post Trip (R1) (Max) 839 mOhm
Temperature Range - Operating -20°C to 85°C
Mounting Through Hole
Dimension 0.450" L x 0.189" W (11.43mm x 4.80mm)
Height - Seated (Max) 0.920" (23.40mm)
Lead Spacing 0.200" (5.08mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 096511-LVR075S
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LVR075S CAD Model

Description

The LVR075S is a polymeric circuit protection component manufactured by Littelfuse Inc.

  • Maximum Voltage Rating: 240V (265V Int)
  • Maximum Current Rating: 7.5A
  • Current Hold (Ih): 750mA
  • Current Trip (It): 1.5A
  • Time to Trip: 18s
  • Approvals: CQC, CSA, TUV, UL
  • Mounting: Through-hole
  • Lead Spacing: 0.200" (5.08mm)

The LVR075S is a reliable component that can be used for various electronic devices. It is a good choice for those who want to build electronic devices that are reliable and durable.
