Same model may have multiple batches, images only for reference.

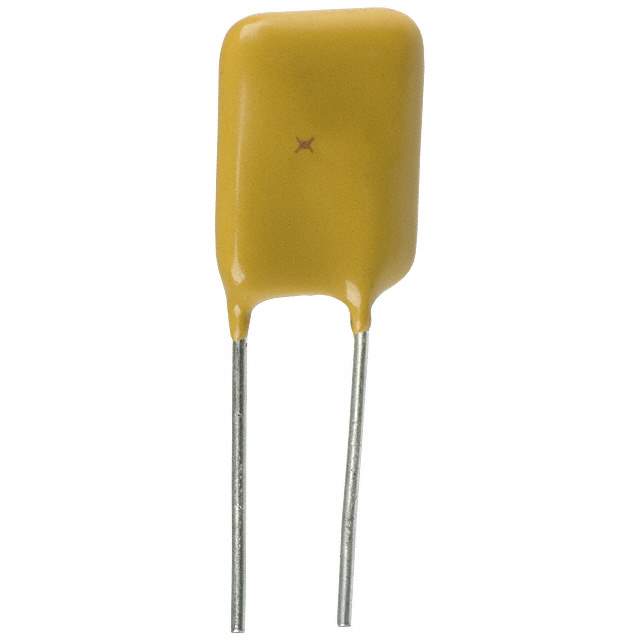

LVR033S-2 Real Image
Same model may have multiple batches, images only for reference.

LVR033S-2

Part No LVR033S-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 0.33A(hold) 0.74A(trip) 240VAC 4.5A 1.7W 21s 0.77Ohm Radial 11.4 X 3.8 X 16.5mm T/R / POLYSWITCH PTC RESET 0.33A HOLD
Datasheet
LVR033S-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, LVR
Packaging Reel package
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 4.5A
Current - Hold (Ih) (Maximum) 330mA
Current - Trip (It) 740mA
Time to Trip 21s
Resistance - Initial (Ri) (Minimum) 770 mOhm
Resistance - Post Trip (R1) (Maximum) 2.6 Ohm
Operating Temperature Range -20°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.449" L x 0.150" W (11.40mm x 3.80mm)
Height - Seated (Maximum) 0.650" (16.50mm)
Lead Spacing 0.200" (5.08mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 784746-LVR033S-2
Popularity Medium
Supply and Demand Status Limited
Family Name LVR
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian LVR033S-2 CAD Model

Description

The Littelfuse Inc. 784746-LVR033S-2 is a polymeric type electronic component. Littelfuse Inc.

  • Protection Type: Circuit Protection
  • Mounting: Through-hole
  • Voltage Max: 240V (265V Int)
  • Current Max: 4.5A
  • Current Trip (It): 740mA
  • Time to Trip: 21s
  • Current Hold (Ih) (maximum): 330mA
  • Resistance - Initial (Ri) (minimum): 770 mOhm
  • Resistance - Post Trip (R1) (maximum): 2.6 Ohm
  • Supply and Demand Status: Limited
  • Approvals: CQC, CSA, TUV, UL
