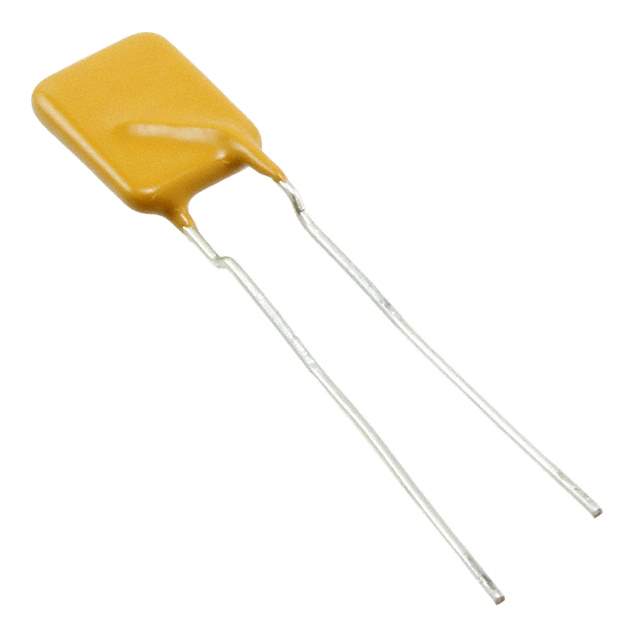

Same model may have multiple batches, images only for reference.

LVR025K

Name: LVR025K
Brand: Littelfuse Inc.
SKU: 626939
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LVR025K
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PolySwitch Resettable Devices Line-Voltage-Rated Devices \| PTC RESET FUSE 240V 250MA RADIAL
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Bulk
Type	Polymeric
Voltage - Max	240V (265V Int)
Current - Max	3.5A
Current - Hold (Ih) (Maximum)	250mA
Current - Trip (It)	560mA
Time to Trip	18.5s
Resistance - Initial (Ri) (Minimum)	1.3 Ohms
Resistance - Post Trip (R1) (Maximum)	3.8 Ohms
Temperature Range - Operating	-20°C ~ 85°C
Mounting Style	Through Hole
Manufacturer Package	Radial, Disc
Parts Dimension	0.378" L x 0.150" W (9.60mm x 3.80mm)
Height - Seated (Maximum)	0.740" (18.80mm)
Lead Spacing	0.200" (5.08mm)
Approvals	CQC, CSA, TUV, UL
Manufacturer Pack Quantity	500
MSL Level	Not Applicable
Win Source Part Number	1209627-LVR025K
Manufacturer Homepage	www.macom.com
Popularity	Medium
Supply and Demand Status	Limited
Application Field	Used in Industrial, Medical, Test & Measurement, Audio, Lighting, Communications & Networking, Security
Ultra Librarian 3D Model	Ultra Librarian LVR025K CAD Model

Alternative Products

Description

The LVR025K is a polymeric type through-hole fuse manufactured by Littelfuse Inc.

Voltage Rating: 240V (265V Int)
Maximum Current Rating: 3.5A
Current Trip: 560mA
Time to Trip: 18.5s
Resistance: 1.3 Ohms
Approvals: CQC, CSA, TUV, UL
Applications: Industrial, Medical, Test & Measurement, Audio, Lighting, Communications & Networking, and Security
Package Type: Radial, Disc
Lead Spacing: 0.200" (5.08mm)
Height: 0.740" (18.80mm)
Maximum Current Hold: 250mA
Resistance Post Trip: 3.8 Ohms
Manufacturer Pack Quantity: 500
