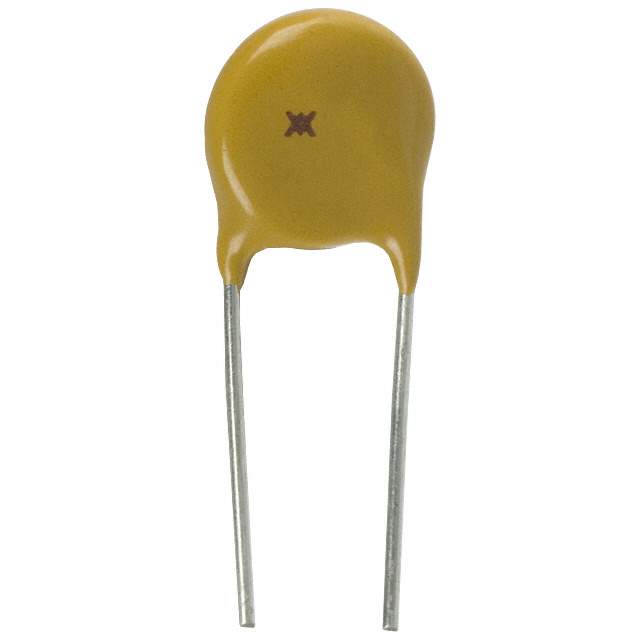

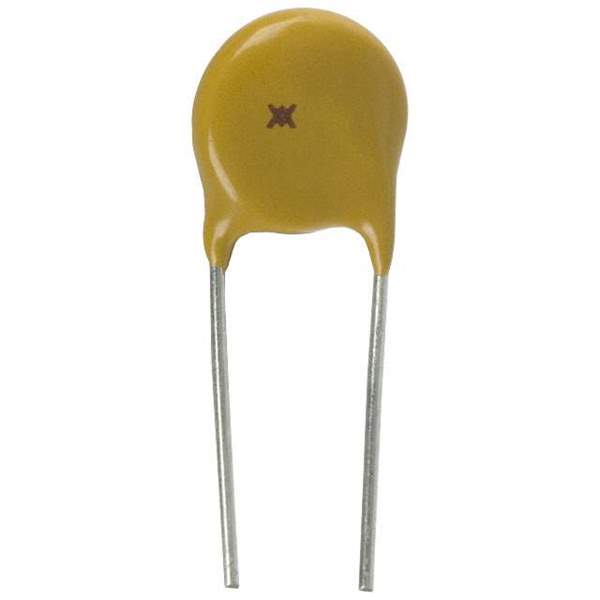

Same model may have multiple batches, images only for reference.

LVR016K-2

Name: LVR016K-2
Brand: Littelfuse Inc.
SKU: 1073076
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LVR016K-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 240V 160MA RADIAL / Polymeric PTC Resettable Fuse 240V (265V Int) 160 mA Ih Through Hole Radial, Disc
Datasheet	LVR016K-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	PolySwitch®, LVR
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Polymeric
Voltage - Max	240V (265V Int)
Current - Max	2 A
Current - Hold (Ih) (Max)	160 mA
Current - Trip (It)	370 mA
Time to Trip	15 s
Resistance - Initial (Ri) (Min)	2.5 Ohms
Resistance - Post Trip (R1) (Max)	7.8 Ohms
Temperature Range - Operating	-20°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial, Disc
Dimension	0.390" Dia x 0.150" T (9.90mm x 3.80mm)
Height - Seated (Max)	0.543" (13.80mm)
Lead Spacing	0.200" (5.08mm)
Approval Agency	CQC, CSA, TUV, UL
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	LVR016KTR-ND,LVR016K-2-ND,LVR016K-2TR,LVR016KTR,LVR016K-2CT,LVR016KCT,RF0067-000,LVR016KCT-ND,LVR016K2
Standard Package	2,000
Win Source Part Number	1073076-LVR016K-2
Ultra Librarian 3D Model	Ultra Librarian LVR016K-2 CAD Model

Description

The Littelfuse PolySwitch LVR016K-2 is a polymeric PTC resettable fuse with a radial, disc package.

Height: 0.543 inches
Thickness: -mm
Maximum Voltage: 240V (265V Int)
Maximum Current: 2A
Current Hold (Ih): 160mA
Current Trip (It): 370mA
Time to Trip: 15s
Operating Temperature: -20°C to 85°C
Initial Resistance: 2.5 Ohms
Post Trip Resistance: 7.8 Ohms
Packaging: Tape & Reel (TR) and Cut Tape (CT)
Standard Package: 2,000
Approvals: CQC, CSA, TUV, and UL
