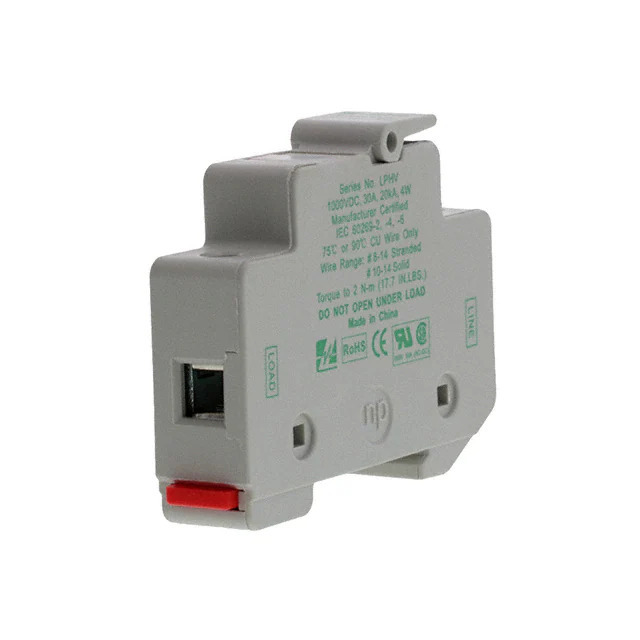

LPHV0001Z Littelfuse Inc.
Same model may have multiple batches, images only for reference.

LPHV0001Z

Part No LPHV0001Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 1000V 30A DINRAIL / Fuse Holder 30 A 1000V 1 Circuit Cartridge DIN Rail
Datasheet
LPHV0001Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series LPHV
Package Box
Product Status Active
Mounting Type DIN Rail
Fuse Size 0.394" Dia x 1.496" L (10mm x 38mm)
Current Rating (Amps) 30 A
For Use With/Related Products 5AG, 13/32" x 1-1/2" (Midget)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 1000V
Orientation -
Termination Style Screw Terminal, Pressure Plate
Contact Material -
Contact Finish -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361509-LPHV0001Z
Ultra Librarian 3D Model Ultra Librarian LPHV0001Z CAD Model

Description

The LPHV series fuseholder from Littelfuse Inc. is a versatile and durable solution for circuit protection.

  • Fuse Size: 5AG, 13/32" x 1-1/2" (Midget)
  • Current Rating: 30A
  • Voltage Rating: 1000V
  • Termination Style: Screw Terminal and Pressure Plate
  • Mounting: DIN Rail Mounting
  • ECCN: EAR99
