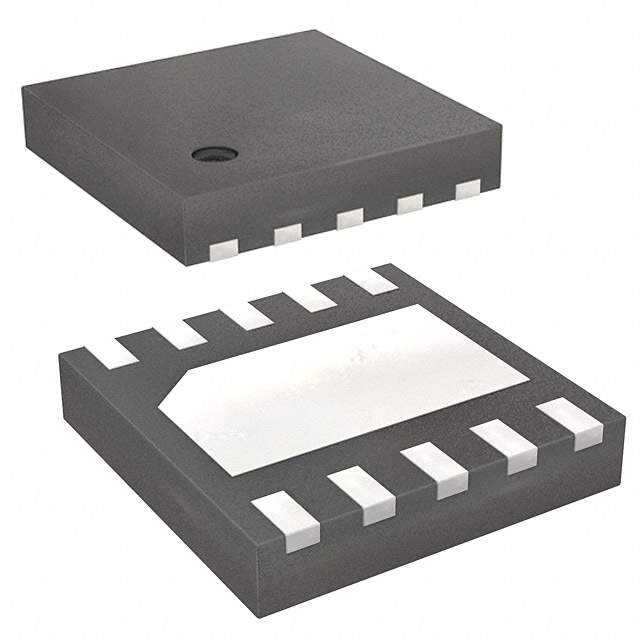

Same model may have multiple batches, images only for reference.

SP4042-02UTG

Name: SP4042-02UTG
Brand: Littelfuse Inc.
SKU: 1299990
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SP4042-02UTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	SP4042, SPA®
Package	Tape & Reel
Type	Steering (Rail to Rail)
Unidirectional Channels	2
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	3.5V
Voltage - Clamping (Max) @ Ipp	22V
Current - Peak Pulse (10/1000µs)	100A (2/10µs)
Power - Peak Pulse	2500W (2.5kW)
Power Line Protection	Yes
Applications	Ethernet
Capacitance @ Frequency	11pF @ 1MHz
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting	SMD (SMT)
Package / Case	10-UFDFN Exposed Pad
Supplier Device Package	10-UDFN (2.6x2.6)
Other Names	F7378CT,F7378TR,F7378DKR,-SP4042-02UTG
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1299990-SP4042-02UTG
Ultra Librarian 3D Model	Ultra Librarian SP4042-02UTG CAD Model

Alternative Products

Description

The SP4042 and SPA series of steering rail-to-rail TVS diodes are designed to protect Ethernet applications from overvoltage transients.

Channel Type: Unidirectional
Voltage - Reverse Standoff: 3.3V (max)
Voltage - Breakdown: 3.5V (min)
Voltage - Clamping: 22V (Max) @ peak impulse current
Power - Peak Pulse: 2500W (2.5kW)
Capacitance @ Frequency: 11pF @ 1MHz
Peak Pulse Current: 100A (2/10µs)
Mounting Type: SMD (SMT)
Package: 10-UFDFN exposed pad
Operating Temperature Range: -40°C to 85°C (TA)
Manufacturer: Littelfuse Inc.
