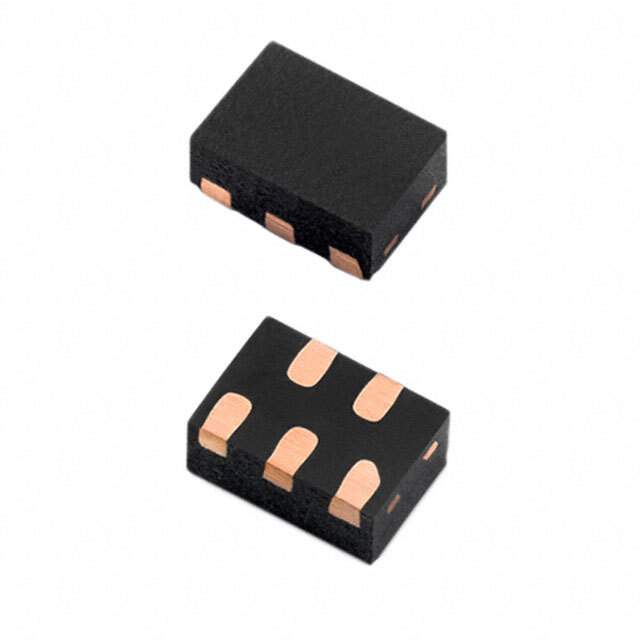

Same model may have multiple batches, images only for reference.

SP3422-04UTG

Name: SP3422-04UTG
Brand: Littelfuse Inc.
SKU: 1299991
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SP3422-04UTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	SP3422, SPA®
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Clamping (Max) @ Ipp	16.7V (Typ)
Current - Peak Pulse (10/1000µs)	2A (8/20µs)
Power Line Protection	Yes
Applications	USB
Capacitance @ Frequency	0.2pF @ 3GHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting	SMD (SMT)
Package / Case	5-XFDFN
Supplier Device Package	5-DFN (1x0.6)
Other Names	F10383TR,-SP3422-04UTG,F10383DKR,F10383CT
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
Win Source Part Number	1299991-SP3422-04UTG
Ultra Librarian 3D Model	Ultra Librarian SP3422-04UTG CAD Model

Alternative Products

Description

The SP3422 series from Littelfuse Inc. is a Steering (Rail to Rail) TVS diode designed for USB applications.

Package: 3,000
Mounting: SMD (SMT)
Channels: 4 unidirectional
Voltage - Reverse Standoff: 5V (Max)
Voltage - Clamping: 16.7V (Typ) @ Ipp
Power Line Protection: Yes
Capacitance: 0.2pF @ 3GHz
Current - Peak Pulse: 2A (8/20µs)
Package / Case: 5-XFDFN
Supplier Device Package: 5-DFN (1x0.6)
Operating Temperature Range: -40°C ~ 125°C (TA)
ECCN: EAR99 compliant
